Tools Required

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

J 45053  Universal Clamp Press. See Special Tools .

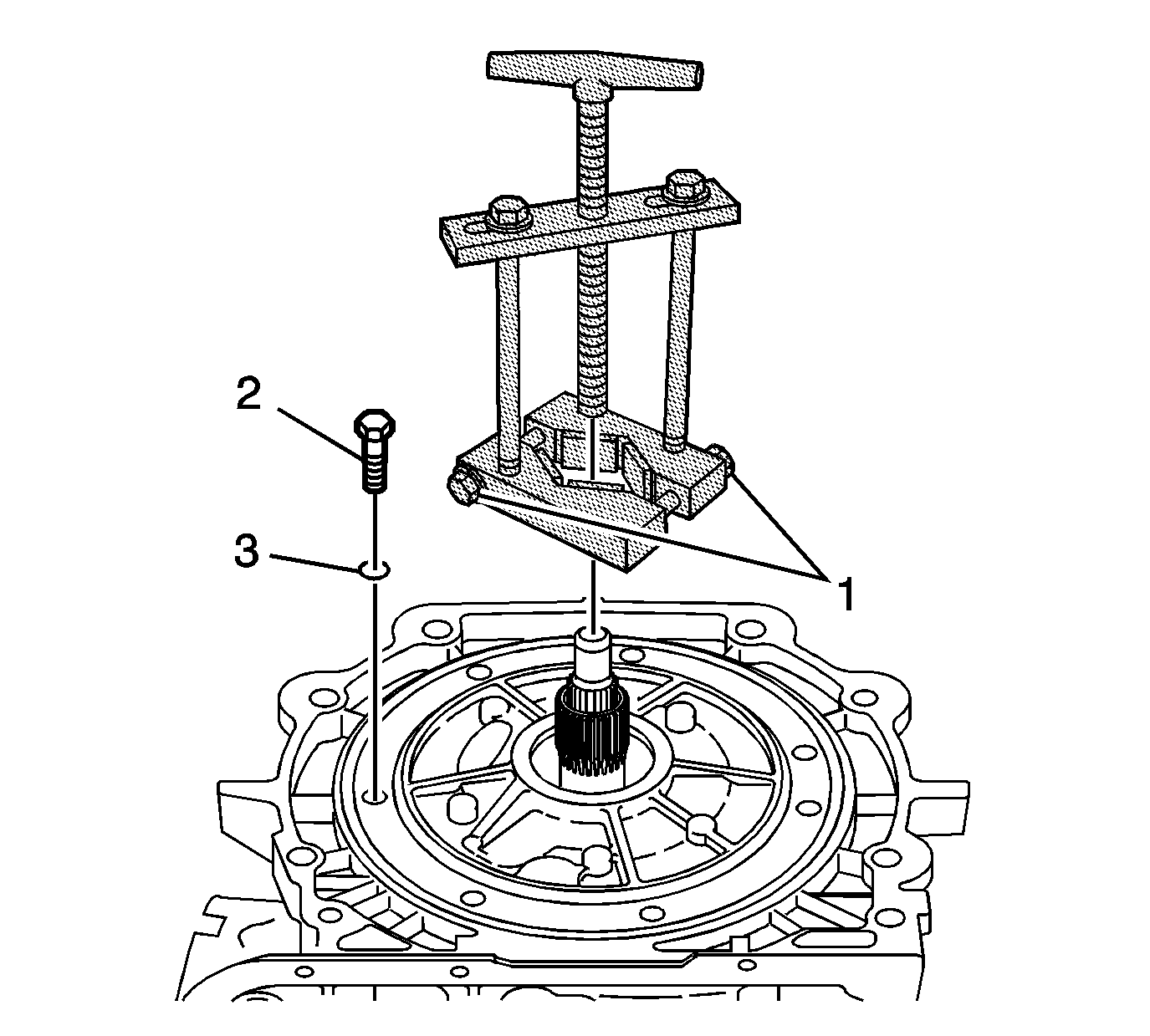

    Fig 1: Locating Pump Bolts & Seals
    GM1730033Courtesy of GENERAL MOTORS CORP.
  1. Remove all pump bolts (2) and pump bolt seal (3).
  2. Install J 45053  over stator shaft. See Special Tools . Tighten the clamp bolts (1).
  3. To prevent slipping, securely fasten the J 45053  around the stator shaft by tightening the bolts (1) with a wrench. See Special Tools .

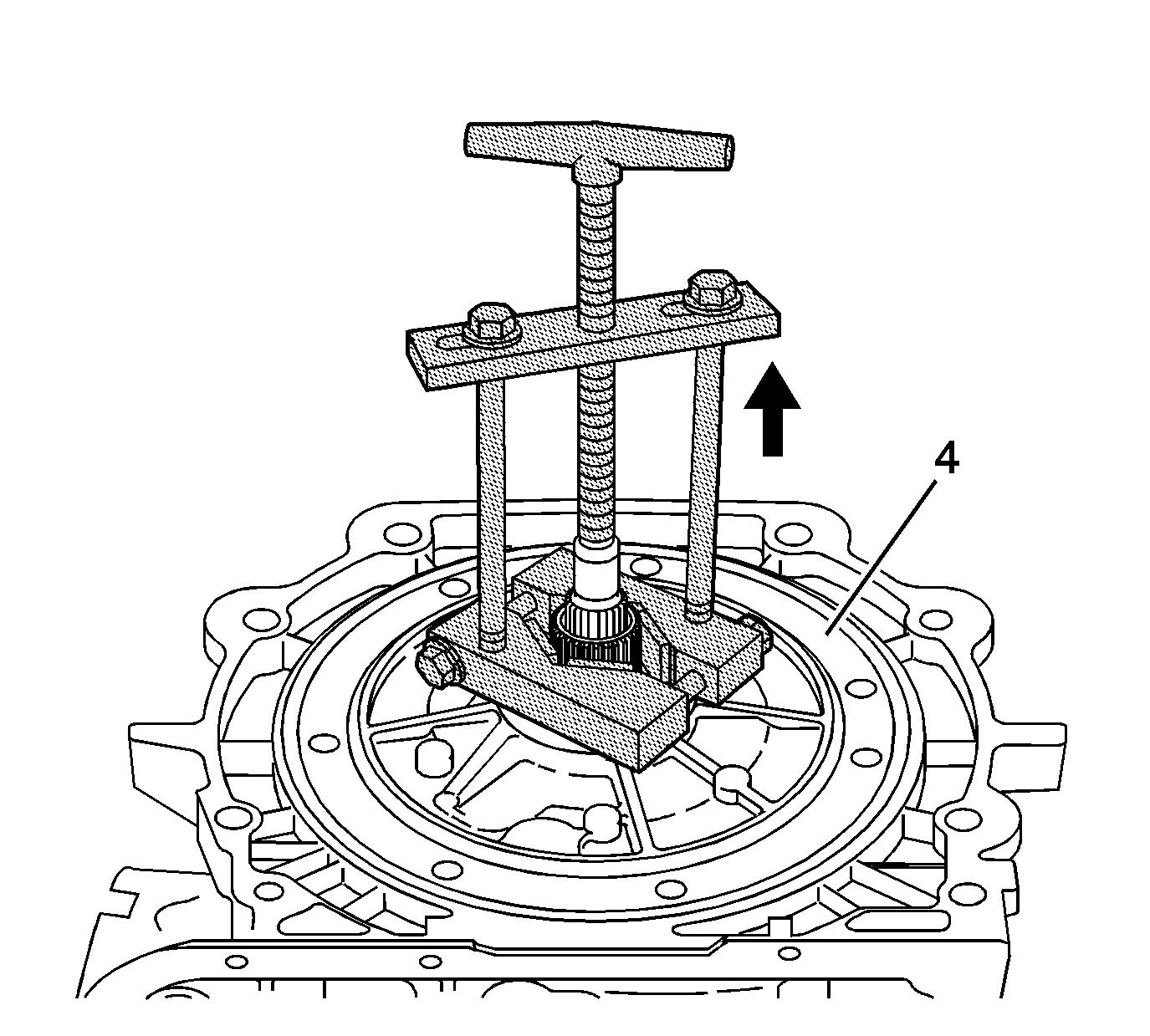

    4. Fig 2: Locating Pump Assembly
    GM1730035Courtesy of GENERAL MOTORS CORP.
  4. Turn the T-handle of the J 45053  to pull the pump assembly (4) from the case. See Special Tools .
  5. Lift the pump (4) out of the case.

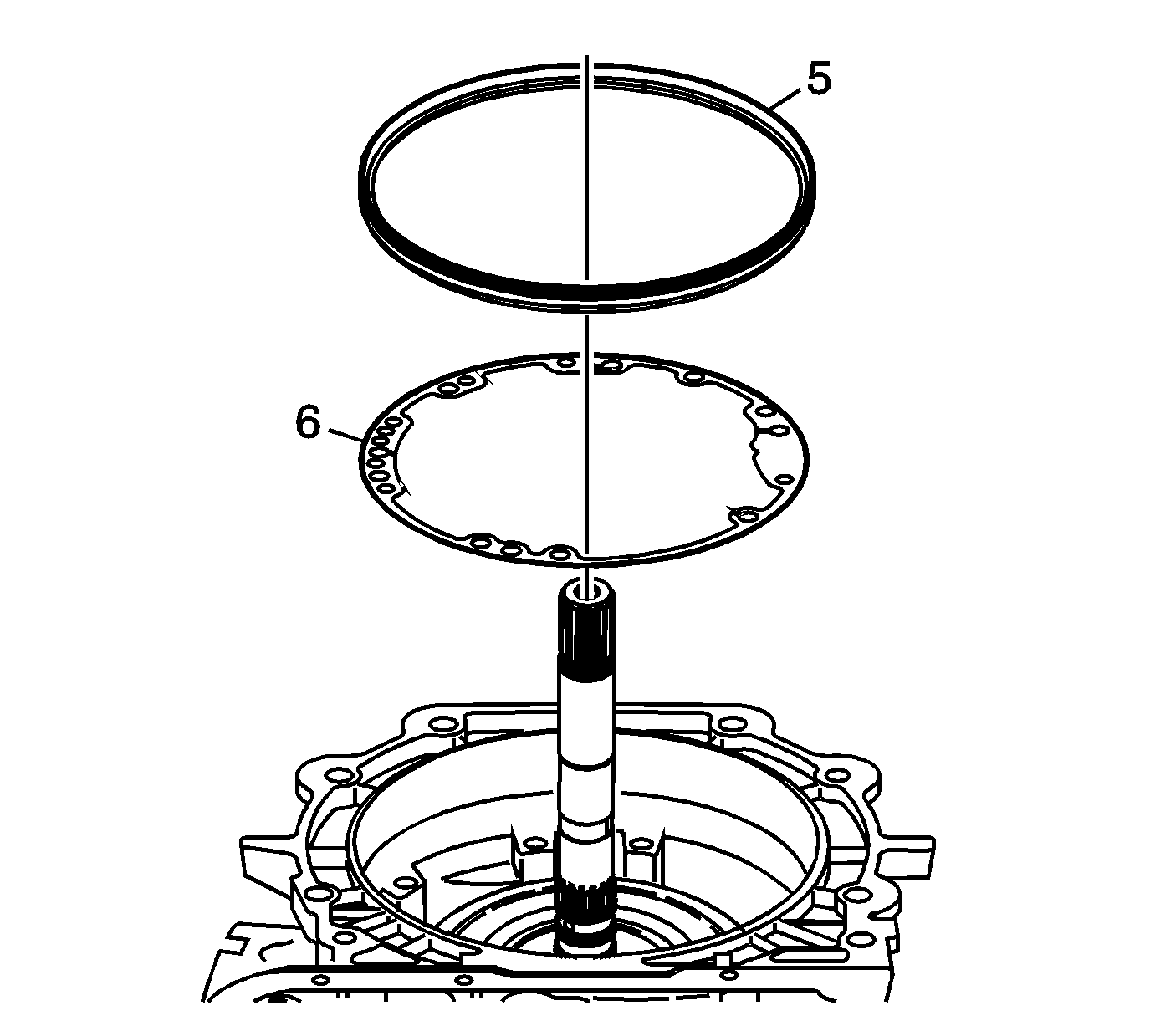

    6. Fig 3: Fluid Pump Seal & Gasket
    GM1552919Courtesy of GENERAL MOTORS CORP.
  6. Remove the fluid pump seal (5).
  7. Remove the pump cover to case gasket (6).
