Inner Manual Linkage Removal

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Inspecting Inner Manual Linkage
    GM880293Courtesy of GENERAL MOTORS CORP.
  1. Remove the following parts:
    1. Hex head nut (90)
    2. Manual valve link (89)
    3. Detent lever (88)
    4. Parking lock actuator assembly (85)
    5. Manual shaft retainer (83)
    6. Manual shaft (84)
    2. Fig 2: Removing Manual Shaft Seal
    GM59273Courtesy of GENERAL MOTORS CORP.
  2. Remove the manual shaft seal (82) with a screwdriver.

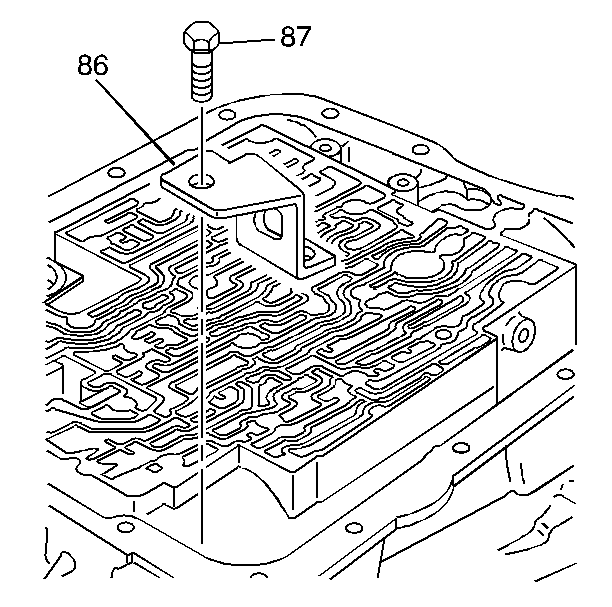

    3. Fig 3: View Of Parking Lock Bracket & Bolt
    GM284393Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components:
    1. The parking lock bracket bolt (87)
    2. The parking lock bracket (86)
