3-4 Accumulator Installation

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

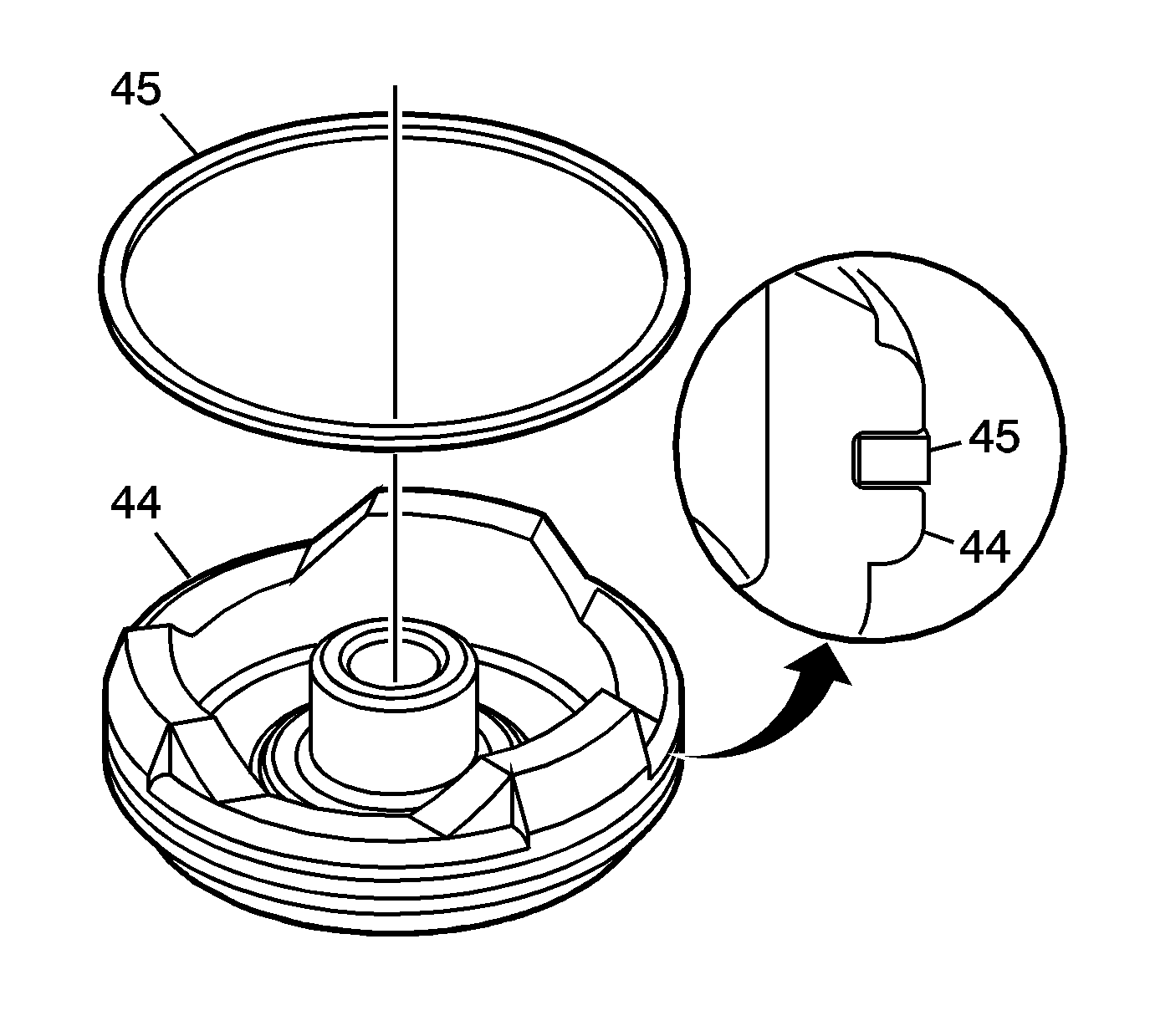

    Fig 1: 3-4 Accumulator Piston & Piston Oil Seal Ring
    GM1730059Courtesy of GENERAL MOTORS CORP.
  1. Inspect the 3-4 accumulator piston (44) for the following conditions:
    • Porosity
    • Cracks
    • Scoring
    • Nicks and scratches
  2. Install the 3-4 accumulator piston oil seal ring (45) on the 3-4 accumulator piston (44).

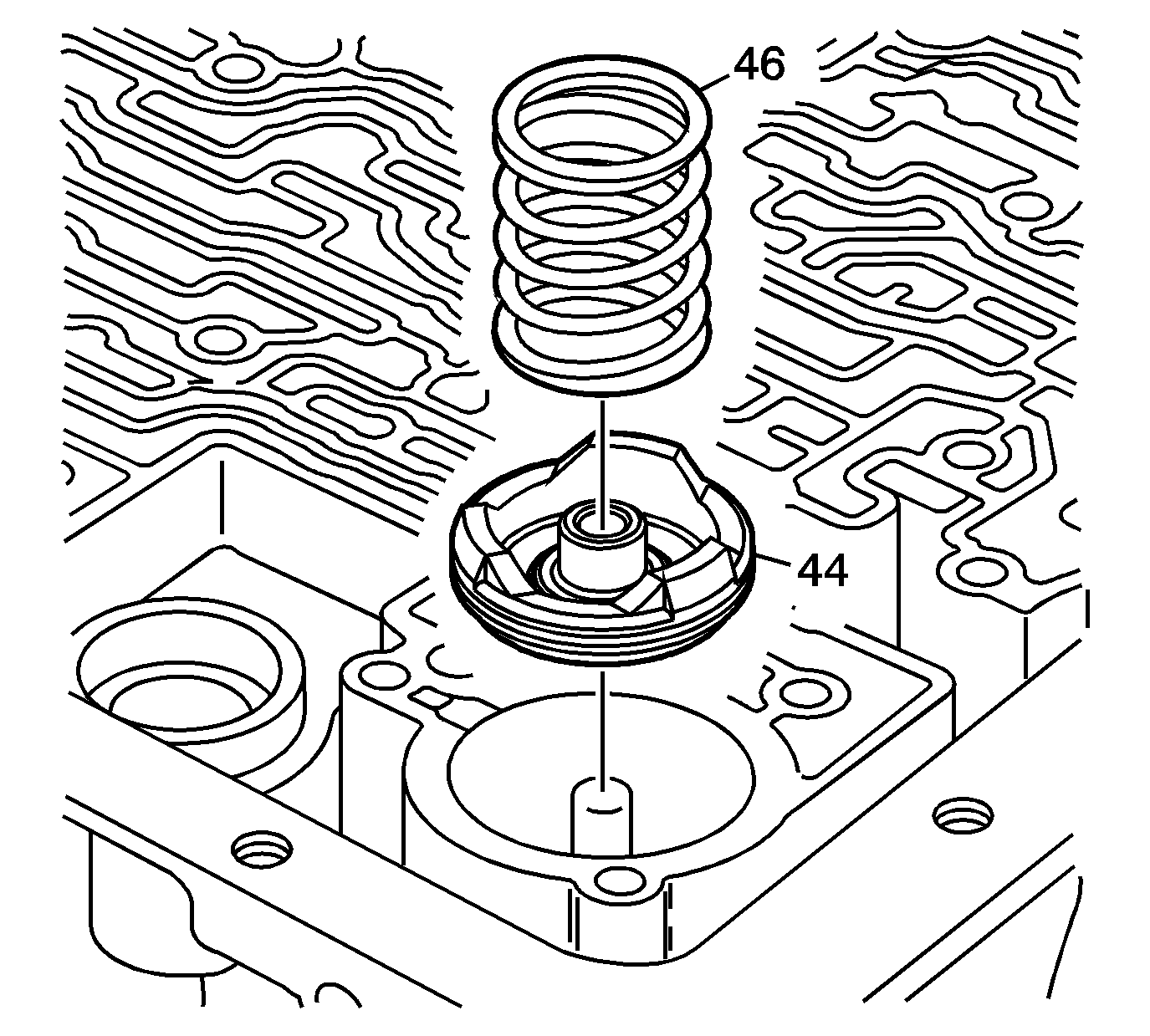

    3. Fig 2: 3-4 Accumulator Piston & Accumulator Spring
    GM1730065Courtesy of GENERAL MOTORS CORP.
  3. Install the 3-4 accumulator piston (44) and seal assembly into the bore.
  4. Inspect the 3-4 accumulator spring (46) for cracks.
    5. IMPORTANT: Some models do not use a 3-4 accumulator spring.
  5. Install the 3-4 accumulator spring.
