Transmission Identification Information
WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

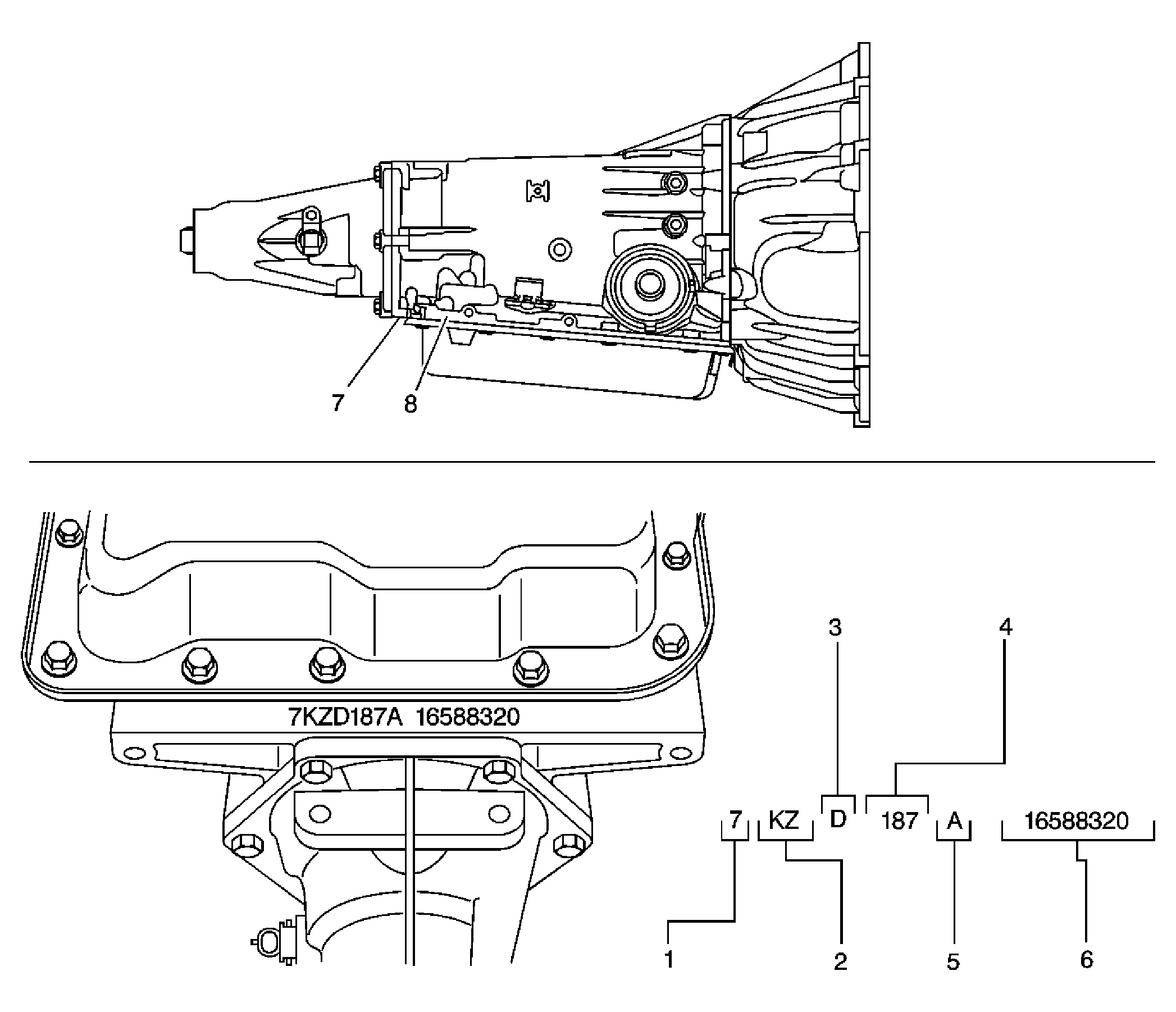

| Callout | Component Name |
|---|---|
| 1 | (7 = 2007) |
| 2 | Model |
| 3 | Hydra-Matic 4L60-E |
| 4 | Julian Date (or Day of the Year) |
| 5 | Shift Built (A, B, J = First Shift; C, H, W = Second Shift) |
| 6 | Serial Number |
| 7 | Transmission ID Location |
| 7 | Transmission ID Location |
| 8 | Optional Transmission ID Location |
Plant and Shift Build
| Plant | Build Line | 1st Shift | 2nd Shift | 3rd Shift |
|---|---|---|---|---|
| Toledo, OH | ML1 | J | W | X |
| ML2 | A | C | Not Used | |
| ML3 | B | H | Not Used | |
| ML4 | S | L | V | |
| ML5 | K | E | Z |
