Neutral - Engine Running - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

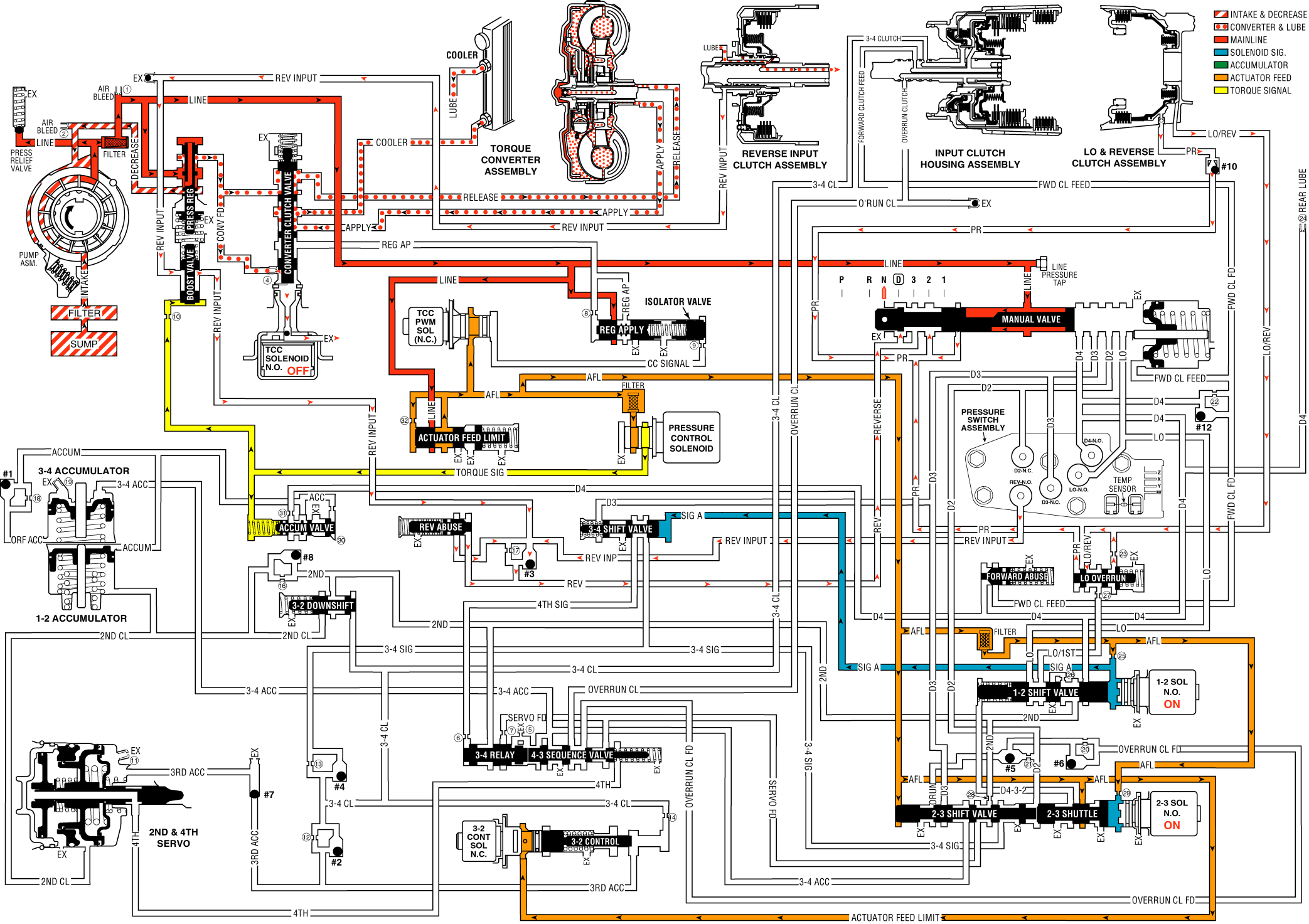

Fig 1: Neutral - Engine Running Hydraulic Circuit Diagram
GM657045Courtesy of GENERAL MOTORS CORP.
