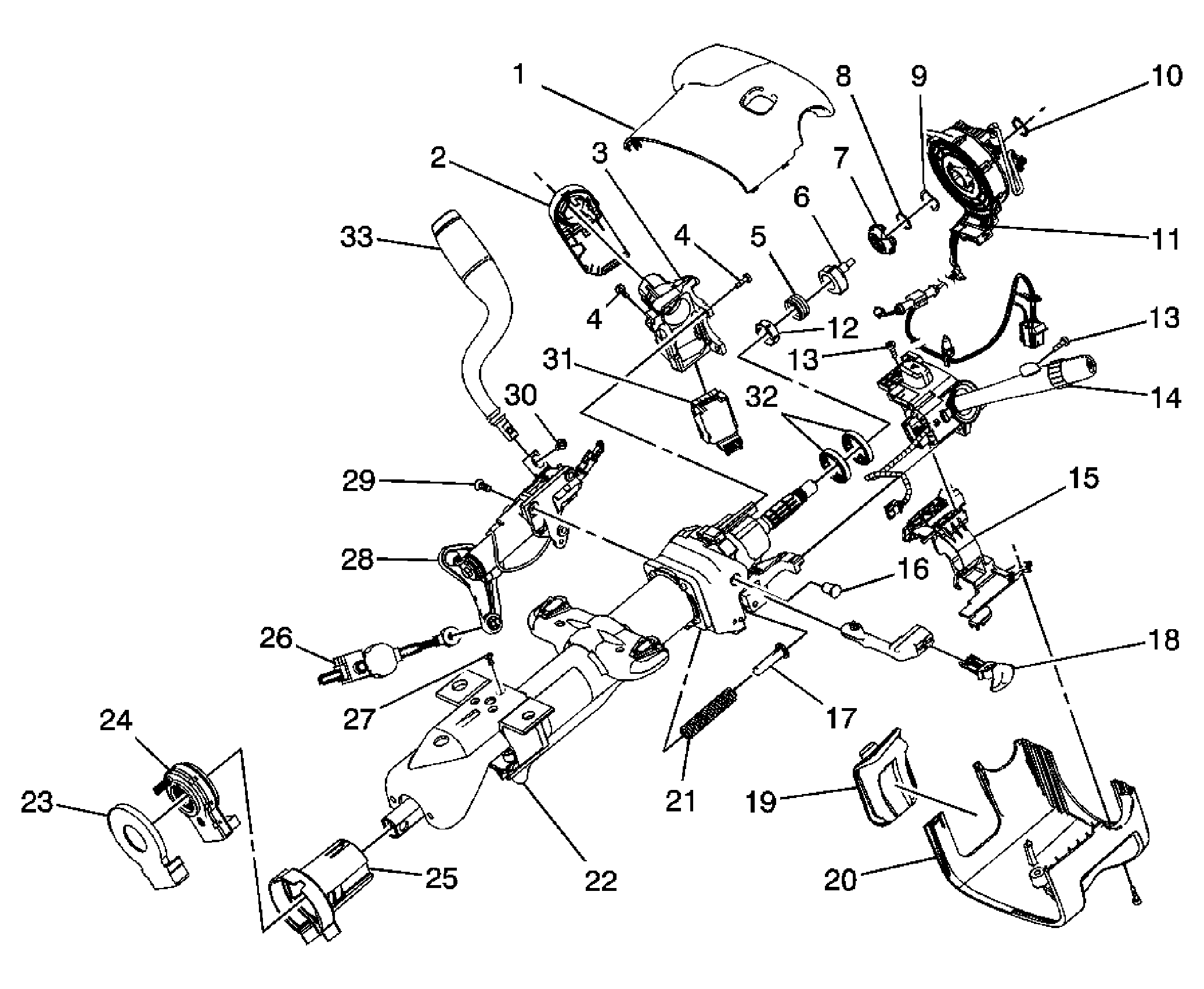

Steering Column Disassembled View
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Steering Column Shroud |
| 2 | Theft Deterrent Module |
| 3 | Ignition Lock Cylinder Case |
| 4 | Ignition Lock Cylinder Case Screw |
| 5 | Steering Shaft Upper Bearing Spring |
| 6 | Turn Signal Switch Cancel Cam |
| 7 | Turn Signal Switch Cancel Cam Position Plate |
| 8 | Steering Shaft Lock Plate Retaining Ring |
| 9 | Inflatable Restraint Steering Wheel Module Coil Wave Washer |
| 10 | Inflatable Restraint Steering Wheel Module Coil Retaining Ring |
| 11 | Inflatable Restraint Steering Wheel Module Coil |
| 12 | Steering Shaft Upper Bearing Race Seat |
| 13 | Turn Signal Multifunction Switch Bolt |
| 14 | Turn Signal Multifunction Switch |
| 15 | Ignition Lock Cylinder Case Bracket |
| 16 | Steering Column Pivot Pin |
| 17 | Spring Guide |
| 18 | Tilt Lever |
| 19 | Shift Lever Seal |
| 20 | Steering Column Shroud |
| 21 | Tilt Spring |
| 22 | Steering Column |
| 23 | Steering Wheel Position Sensor Retaining Clip |
| 24 | Steering Wheel Position Sensor |
| 25 | Steering Shaft Lower Bearing |
| 26 | Automatic Transmission Shift Lock Actuator |
| 27 | Steering Column Bracket Screw |
| 28 | Automatic Transmission Control |
| 29 | Automatic Transmission Control Bolt |
| 30 | Shift Lever Bolt |
| 31 | Ignition/Start Switch |
| 32 | Steering Shaft Upper Bearing |
| 33 | Shift Lever |
