Clock Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

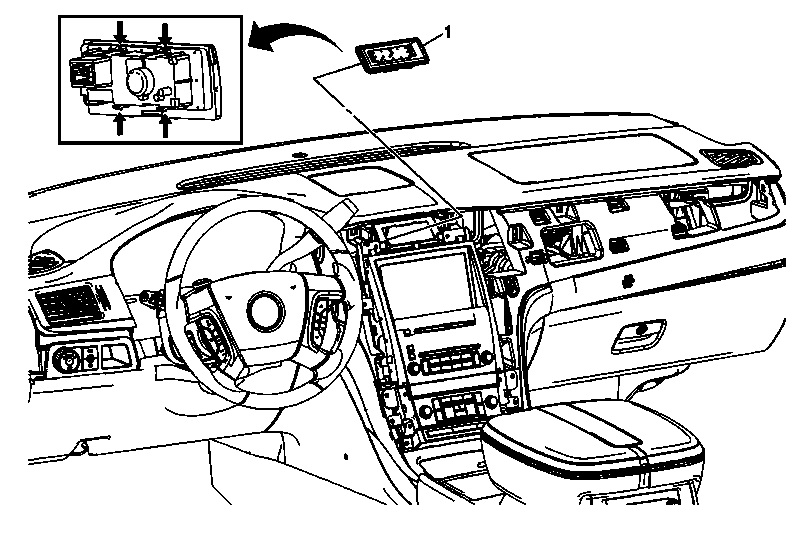

Fig 1: View Of Clock Assembly
GM1703204Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
1 Clock Assembly
Tip:
  1. Disconnect the electrical connection.
  2. Squeeze the tabs to release the clock from the instrument panel accessory trim plate.
