Heater Inlet Hose Replacement (Pump to Engine-HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

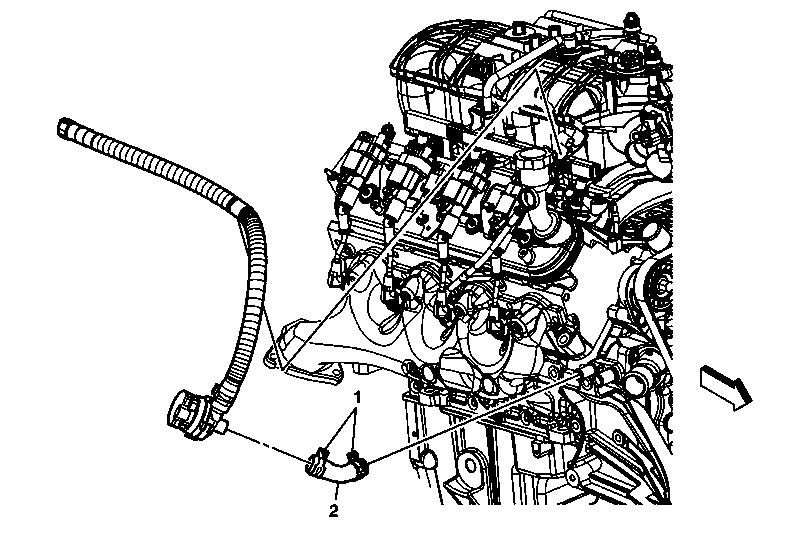

Fig 1: Heater Inlet Hose Replacement (Pump to Engine-HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) . Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement . Remove the air cleaner. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Heater Inlet Hose Clamp Procedure: UsingJ 38185 reposition the radiator surge tank outlet hose clamps. Special Tools: J 38185 Hose Clamp Pliers
2	Heater Inlet Hose

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) .
Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Heater Inlet Hose Clamp
Procedure:
UsingJ 38185 reposition the radiator surge tank outlet hose clamps.
Special Tools:
J 38185 Hose Clamp Pliers

Heater Inlet Hose
