Heater Coolant Pump Replacement (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

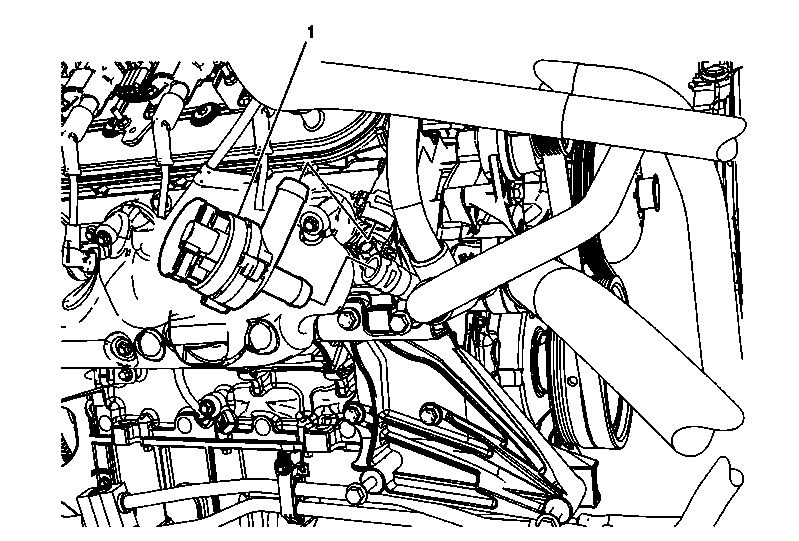

Fig 1: Heater Coolant Pump Replacement (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) . Remove the air cleaner. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . Disconnect the heater coolant pump electrical connector.
1	Heater Coolant Pump Procedure: UsingJ 38185 reposition the heater hose clamps at pump. Special Tools: J 38185 Hose Clamp Pliers

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) .
Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Disconnect the heater coolant pump electrical connector.

Heater Coolant Pump
Procedure:
UsingJ 38185 reposition the heater hose clamps at pump.
Special Tools:
J 38185 Hose Clamp Pliers
