Air Conditioning Clutch Drive Plate Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

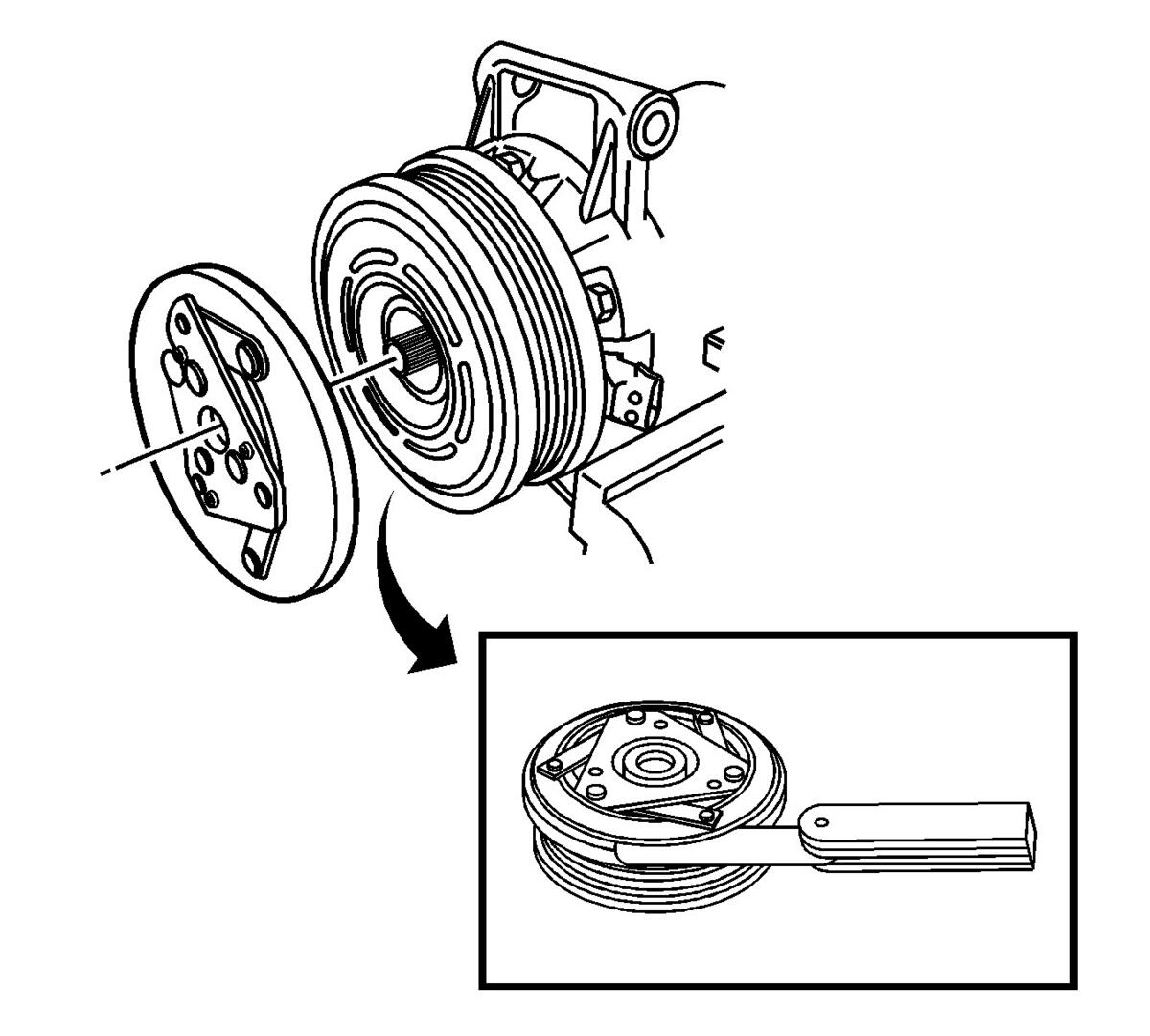

    Fig 1: Air Conditioning Clutch Drive Plate Adjustment
    GM2073711Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch plate assembly.
    2. IMPORTANT: Ensure the drive plate does not drag against the pulley when the pulley is rotated.
  2. Measure the air gap between the pulley and the drive plate. Adjust the shims to achieve a 0.35-0.65 mm (0.014-0.026 in) air gap.
    3. NOTE: Refer to Fastener Notice .
  3. Install the clutch plate retaining bolt.

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).
