Battery Fan Assembly Components
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

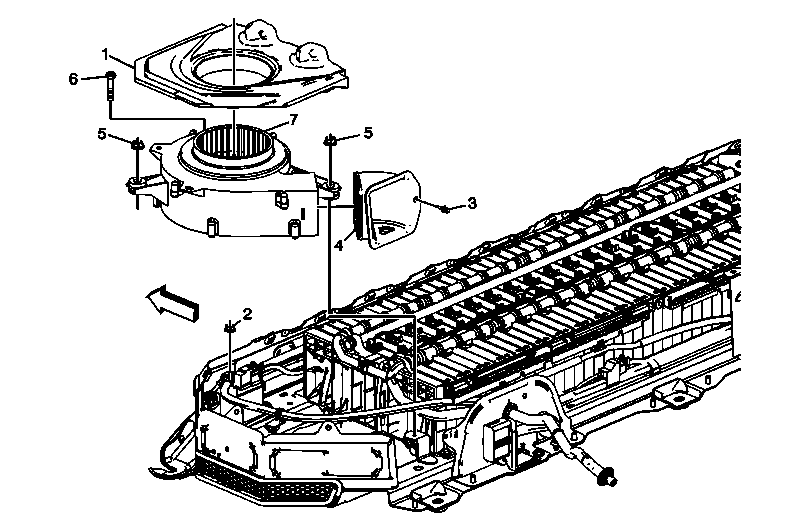

Battery Fan Assembly Components
| Callout | Component Name |
|---|---|
| 1 | Battery Cooling Air Outlet Duct |
| 2 | Drive Motor Battery Cable Terminal Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 5 N.m (44 lb in) Tip: Remove cable retainer from battery fan assembly. |
| 3 | Battery Vent Fan Duct Retainer |
| 4 | Drive Motor Generator Battery Cooling Outlet Duct |
| 5 | Drive Motor Generator Battery Cooling Blower Nut (Qty: 2) Tighten: 6 N.m (53 lb in) |
| 6 | Drive Motor Battery Cooling Blower Bolt Tighten: 6 N.m (53 lb in) |
| 7 | Battery Fan Assembly |
