Drive Motor Battery Cable Terminal Extension Cover Replacement

WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

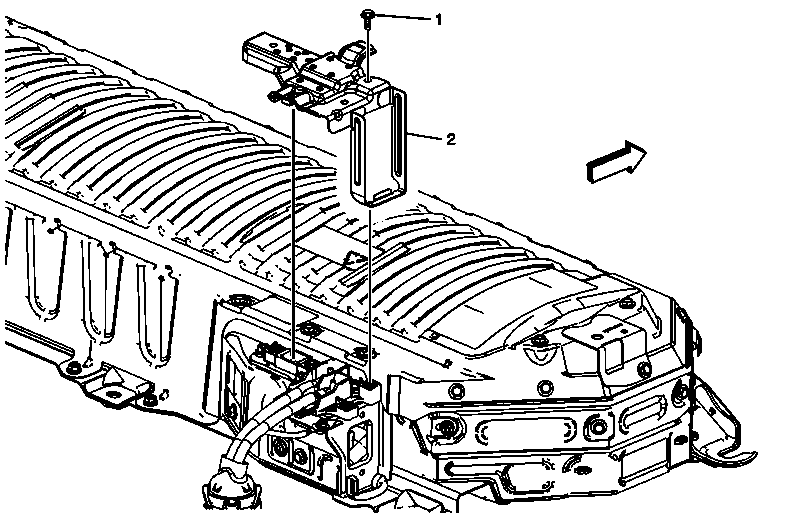

Fig 1: Drive Motor Battery Cable Terminal Extension Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed. The High Voltage Disabling procedure will perform the following tasks: Identify how to disable high voltage. Identify how to test for the presence of high voltage. Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed. Failure to follow the procedures exactly as written may result in serious injury or death. Preliminary Procedure: Disable the high voltage at the drive motor generator battery. Refer to High Voltage Disabling . Remove the rear seat frame front finish cover. Refer to Rear Seat Frame Front Finish Cover Replacement (HP2) . Tip seat up and remove the rear seat riser finish cover. Refer to Rear Seat Riser Finish Cover Replacement (Tahoe/Yukon/Escalade w/Split Bench) or Rear Seat Riser Finish Cover Replacement (Tahoe/Yukon/Escalade w/Bucket) or Rear Seat Riser Finish Cover Replacement (HP2) .
1	Drive Motor Battery Cable Terminal Extension Cover Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Drive Motor Battery Cable Terminal Extension Cover Procedure:: After the cover has been replaced and the re-assembly of the drive motor generator battery, enable the HV system. Refer to High Voltage Enabling .

Callout

Component Name

WARNING: Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.
The High Voltage Disabling procedure will perform the following tasks:

Identify how to disable high voltage.
Identify how to test for the presence of high voltage.
Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.

Failure to follow the procedures exactly as written may result in serious injury or death.

Preliminary Procedure:

Disable the high voltage at the drive motor generator battery. Refer to High Voltage Disabling .
Remove the rear seat frame front finish cover. Refer to Rear Seat Frame Front Finish Cover Replacement (HP2) .
Tip seat up and remove the rear seat riser finish cover. Refer to Rear Seat Riser Finish Cover Replacement (Tahoe/Yukon/Escalade w/Split Bench) or Rear Seat Riser Finish Cover Replacement (Tahoe/Yukon/Escalade w/Bucket) or Rear Seat Riser Finish Cover Replacement (HP2) .

Drive Motor Battery Cable Terminal Extension Cover Bolts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 6 N.m (53 lb in)

Drive Motor Battery Cable Terminal Extension Cover
Procedure::
After the cover has been replaced and the re-assembly of the drive motor generator battery, enable the HV system. Refer to High Voltage Enabling .
