Drive Motor Generator Battery Identification Information
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

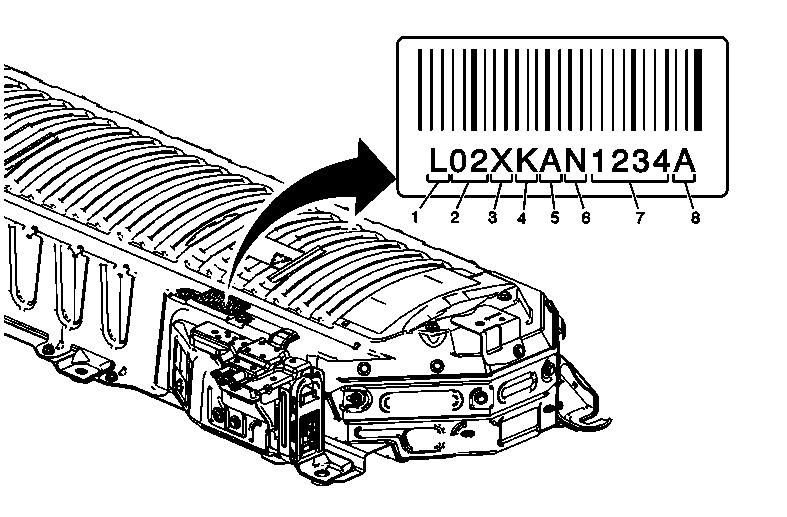

| Callout | Component Name |
|---|---|
| 1 | Quantity of Modules: 40 Batteries = L |
| 2 | Date of Production: 2nd day = 02 |
| 3 | Month of Production: 1,2,3....9, X(10), Y(11), Z(12) |
| 4 | Year of Production: 2008 = L, 2007 = K |
| 5 | Production Shift: A, B |
| 6 | Vehicle Type: T921 = N, T921 Service Parts = O, T901 = P, T901 Service Parts = Q |
| 7 | Serial Number (Sequence Number) |
| 8 | Record of Minor Changes |
