Seat Belt Retractor Replacement - No. 1 Rear (Extended Wheelbase)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

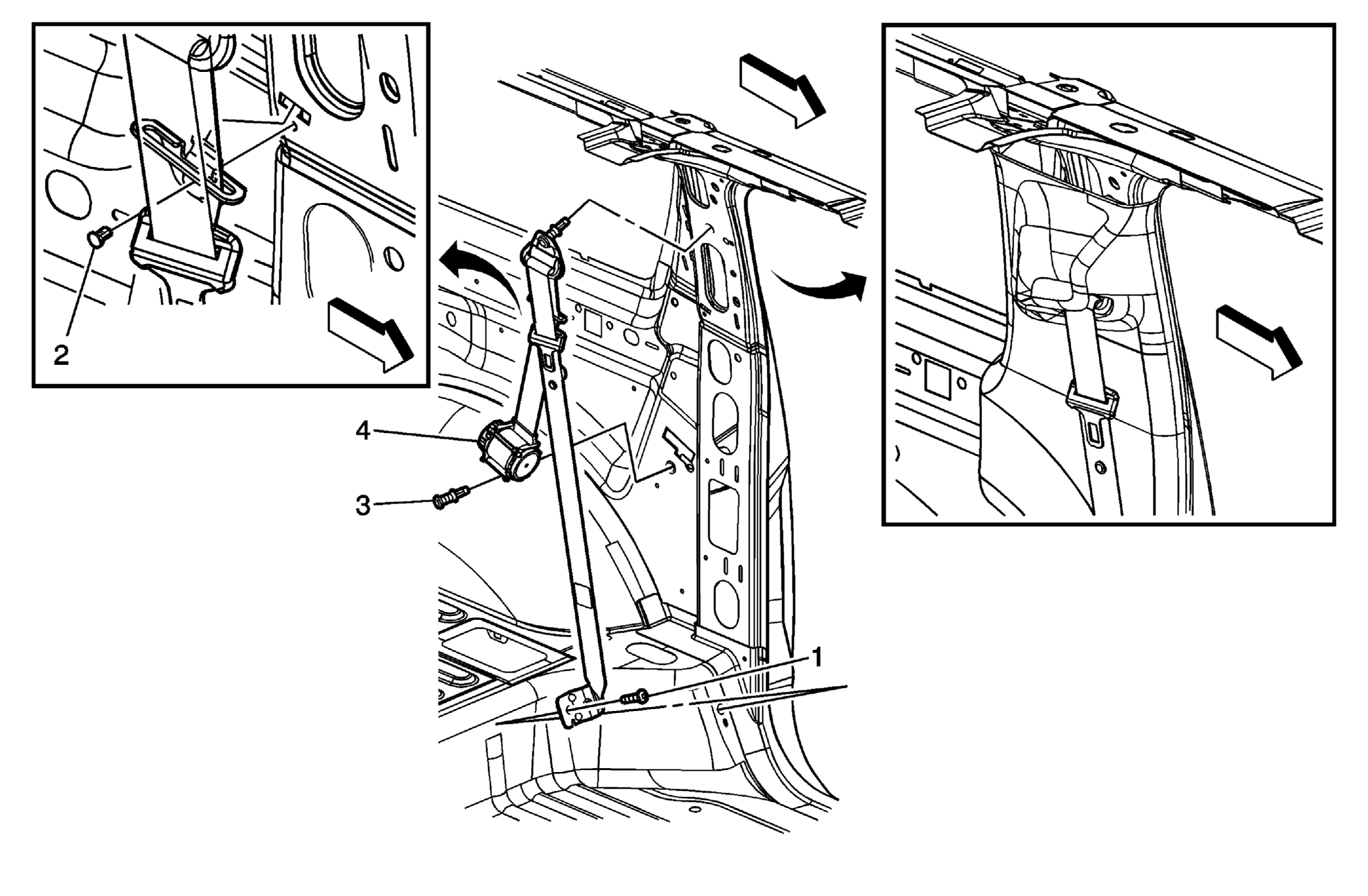

Fig 1: View Of Rear Seat Belt Retractor Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable roof rail SIR system. Refer to SIR Disabling and Enabling . Remove rear side door sill plate. Refer to Rear Side Door Sill Plate Replacement (Standard Wheelbase) or Rear Side Door Sill Plate Replacement (Extended Wheelbase) . Remove body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) or Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) or Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) .
1	Rear Seat Shoulder Belt Anchor Plate Bolt Tighten: 43 N.m (32 lb ft)
2	Rear Seat Shoulder Belt Guide Retainer
3	Rear Seat Shoulder Belt Retractor Bolt Tighten: 43 N.m (32 lb ft)
4	Rear Seat Shoulder Belt Retractor Assembly
