Front Floor Console Cup Holder Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

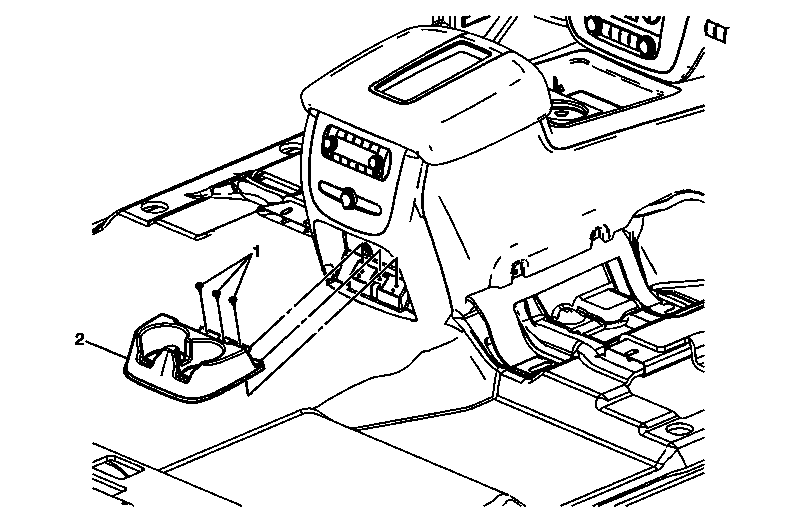

Fig 1: View Of Front Floor Console Rear Cupholder Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Rear Cupholder Assembly Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Rear Cupholder Assembly
