Rear Seat Cushion Trim Panel Replacement (Avalanche/Escalade EXT)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

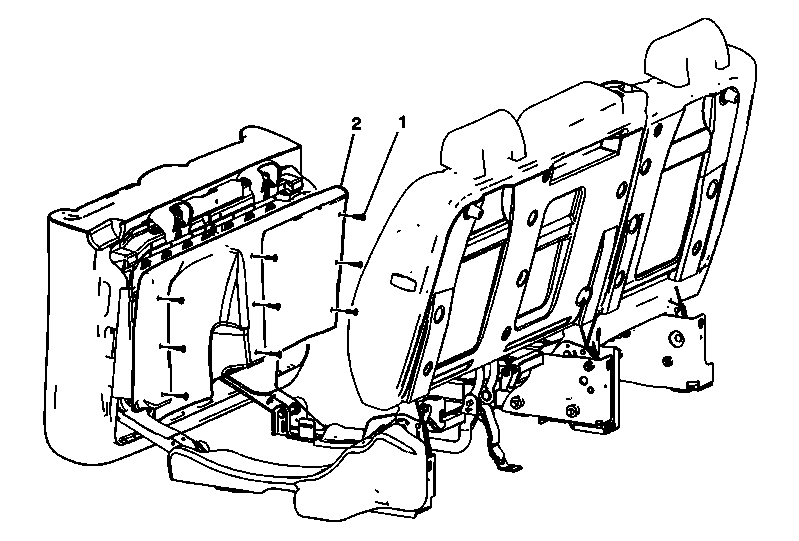

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Unlatch the rear seat cushion and fold forward. |
|
| 1 | Rear Seat Cushion Trim Panel Bolt (Qty: 9)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Rear Seat Cushion Trim Panel |
