Armrest Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

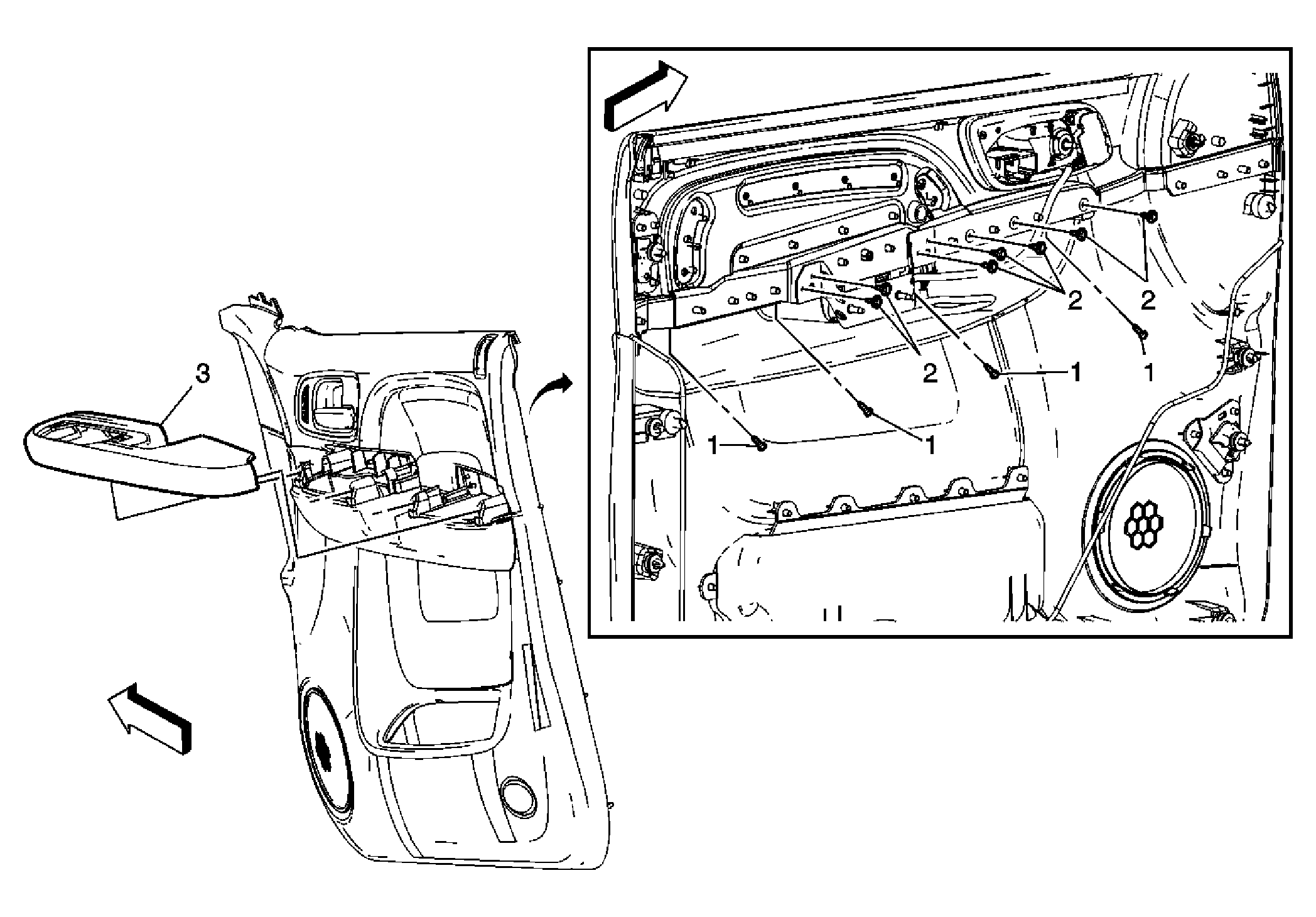

Fig 1: View Of Front Side Door Armrest Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove door upper trim panel. Refer to Upper Extension Trim Panel Replacement (Escalade) or Upper Extension Trim Panel Replacement (Except Escalade) . Remove door window control switch. Refer to Door Lock and Side Window Switch Replacement - Driver Side or Door Lock and Side Window Switch Replacement - Passenger Side . Remove door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Armrest Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Side Door Trim Panel Bolts (Qty: 7) Tighten: 2 N.m (18 lb in)
3	Front Side Door Armrest Assembly
