Front Side Door Bottom Auxiliary Sealing Strip Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

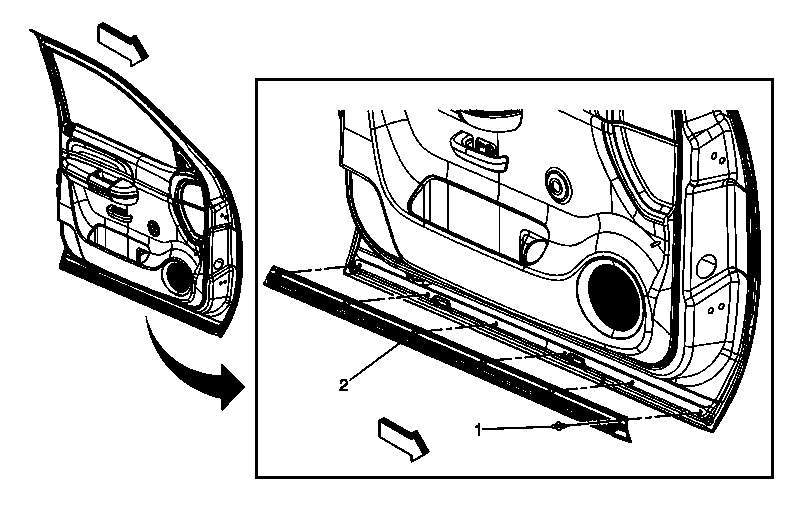

Fig 1: View Of Front Side Door Bottom Auxiliary Sealing Strip & Retainers
GM1744274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Side Door Bottom Auxiliary Sealing Strip Retainer (Qty: 6)
2 Front Side Door Bottom Auxiliary Sealing Strip
