Exterior Lights Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

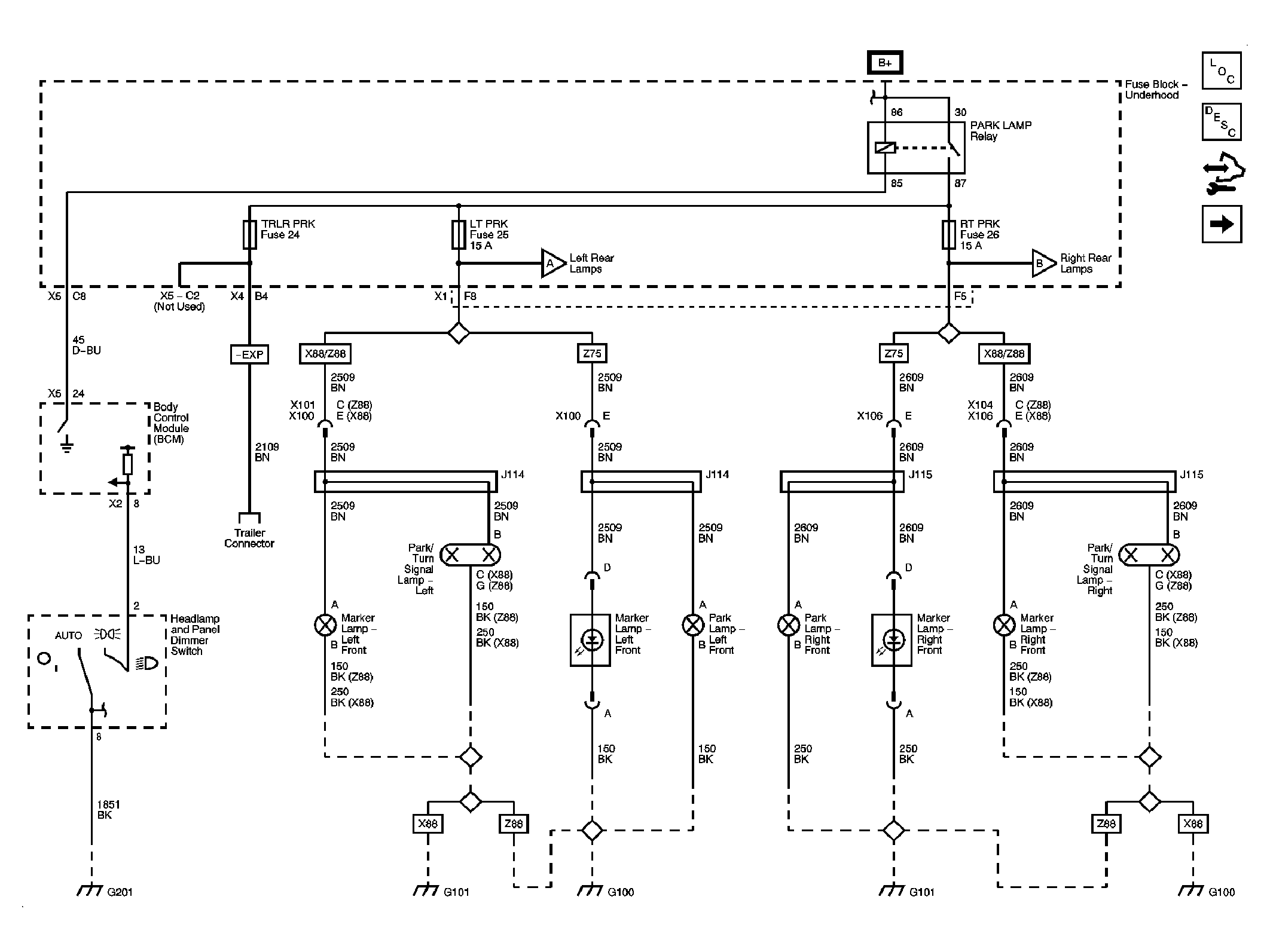

Fig 1: Park Lamp Controls & Front Park Lamps Schematic

GM1907053

Courtesy of GENERAL MOTORS CORP.

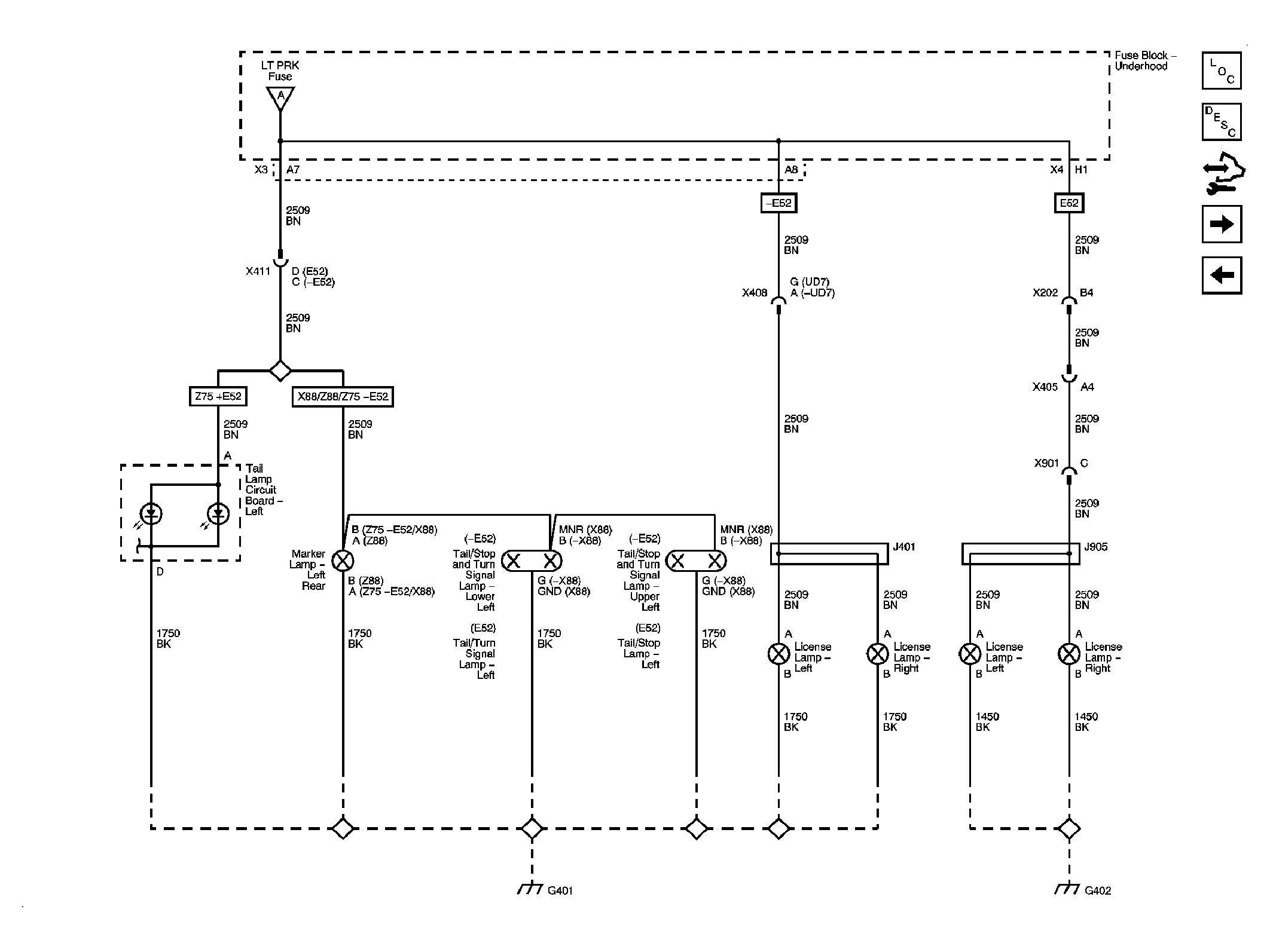

Fig 2: Left Rear Park Lamps & License Lamps Schematic

GM1907058

Courtesy of GENERAL MOTORS CORP.

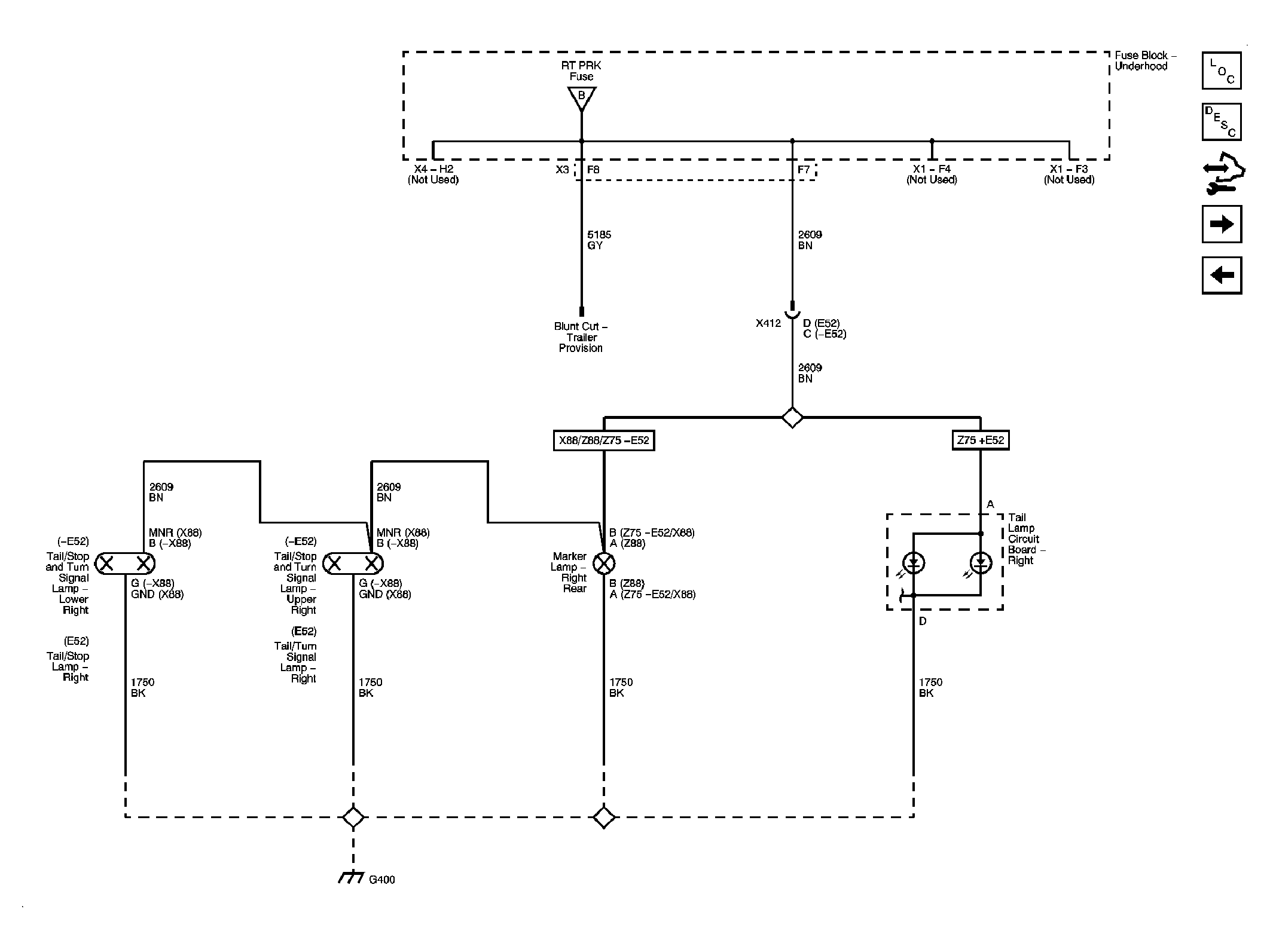

Fig 3: Right Rear Park Lamps Schematic

GM1907063

Courtesy of GENERAL MOTORS CORP.

Fig 4: Exterior Illumination Lamps Schematic

GM1907067

Courtesy of GENERAL MOTORS CORP.

Fig 5: Turn Signal Controls Schematic

GM1907071

Courtesy of GENERAL MOTORS CORP.

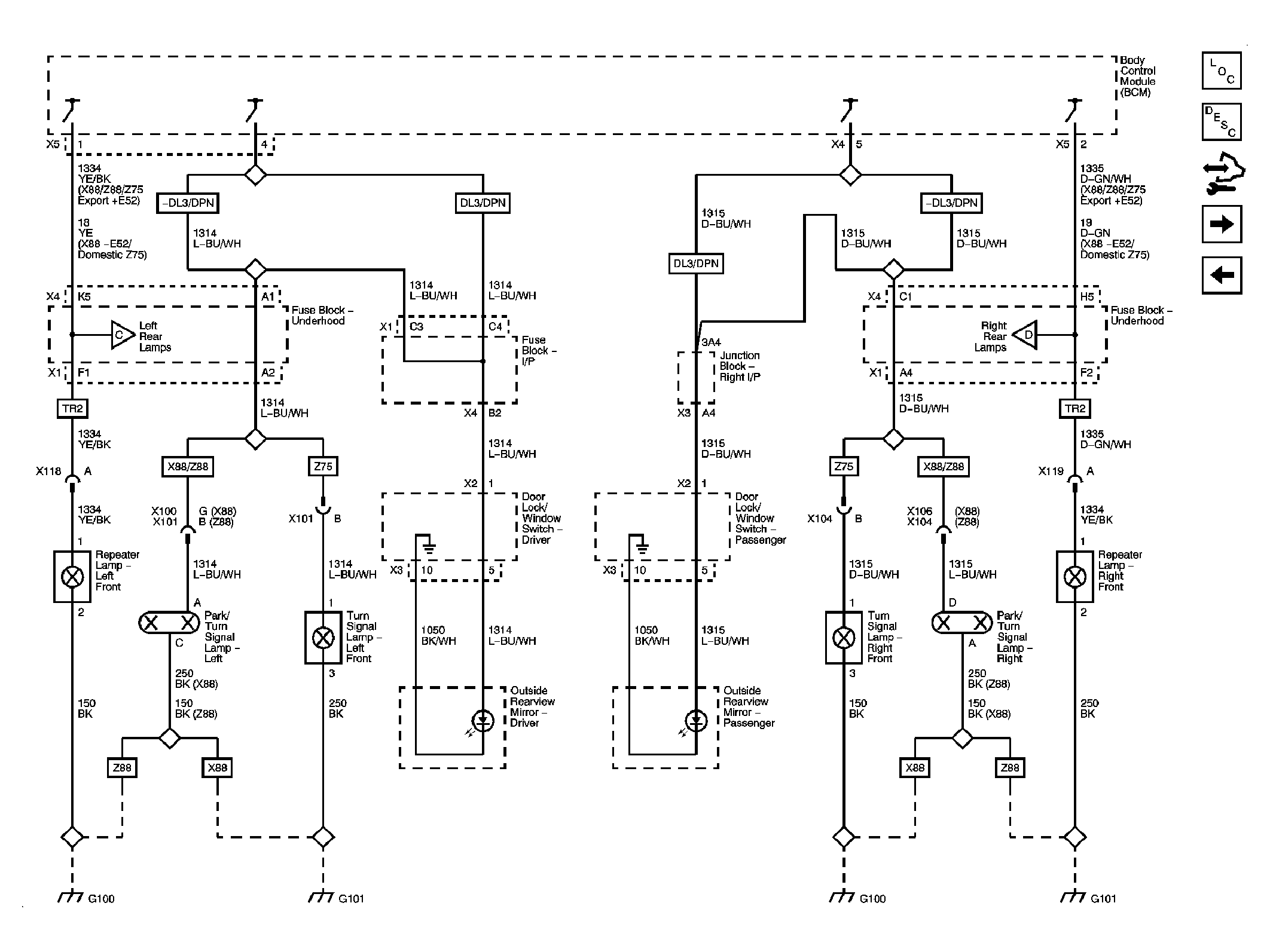

Fig 6: Front Turn Signal Lamps Schematic

GM1907075

Courtesy of GENERAL MOTORS CORP.

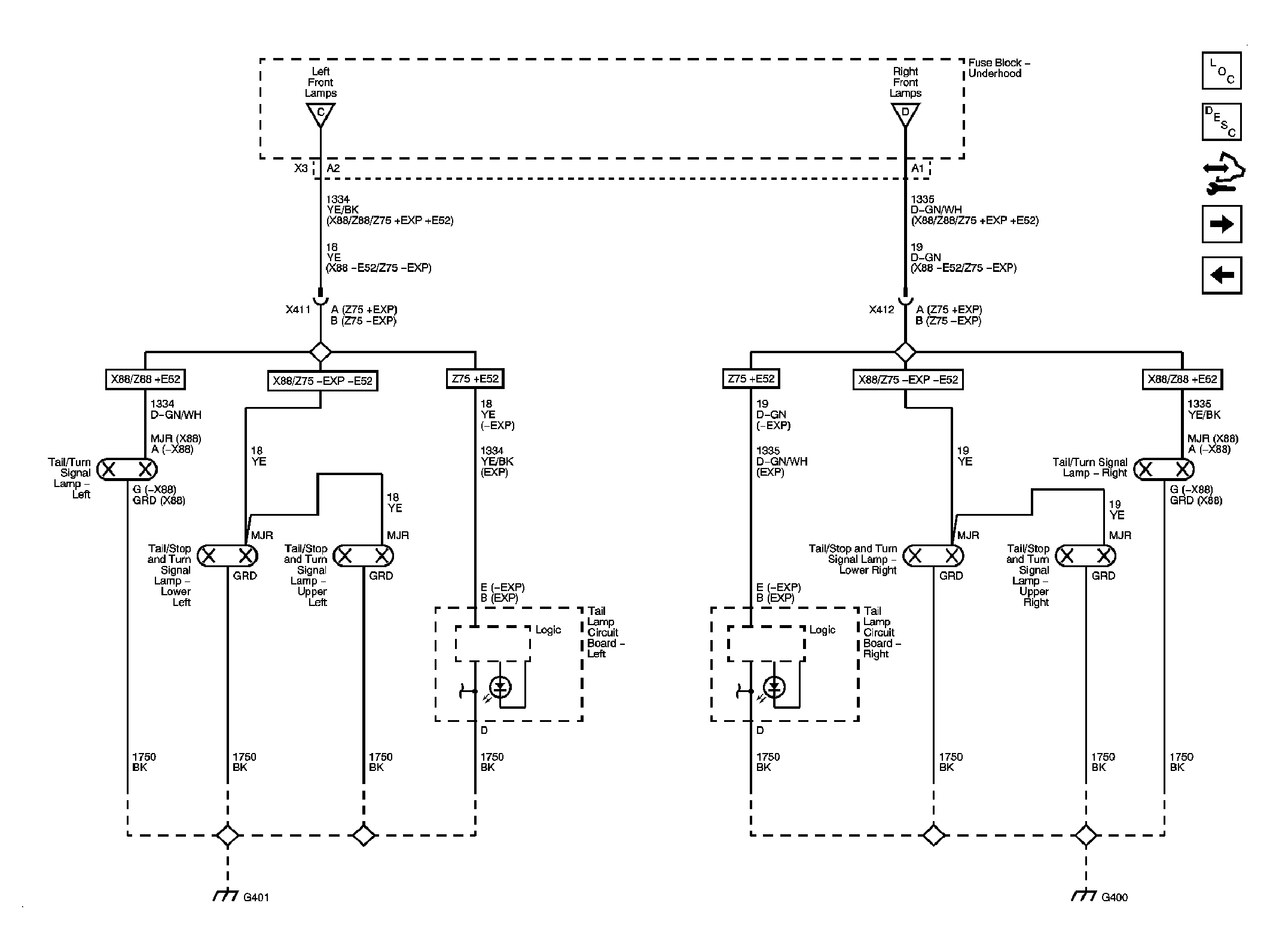

Fig 7: Rear Turn Signal Lamps Schematic

GM1907080

Courtesy of GENERAL MOTORS CORP.

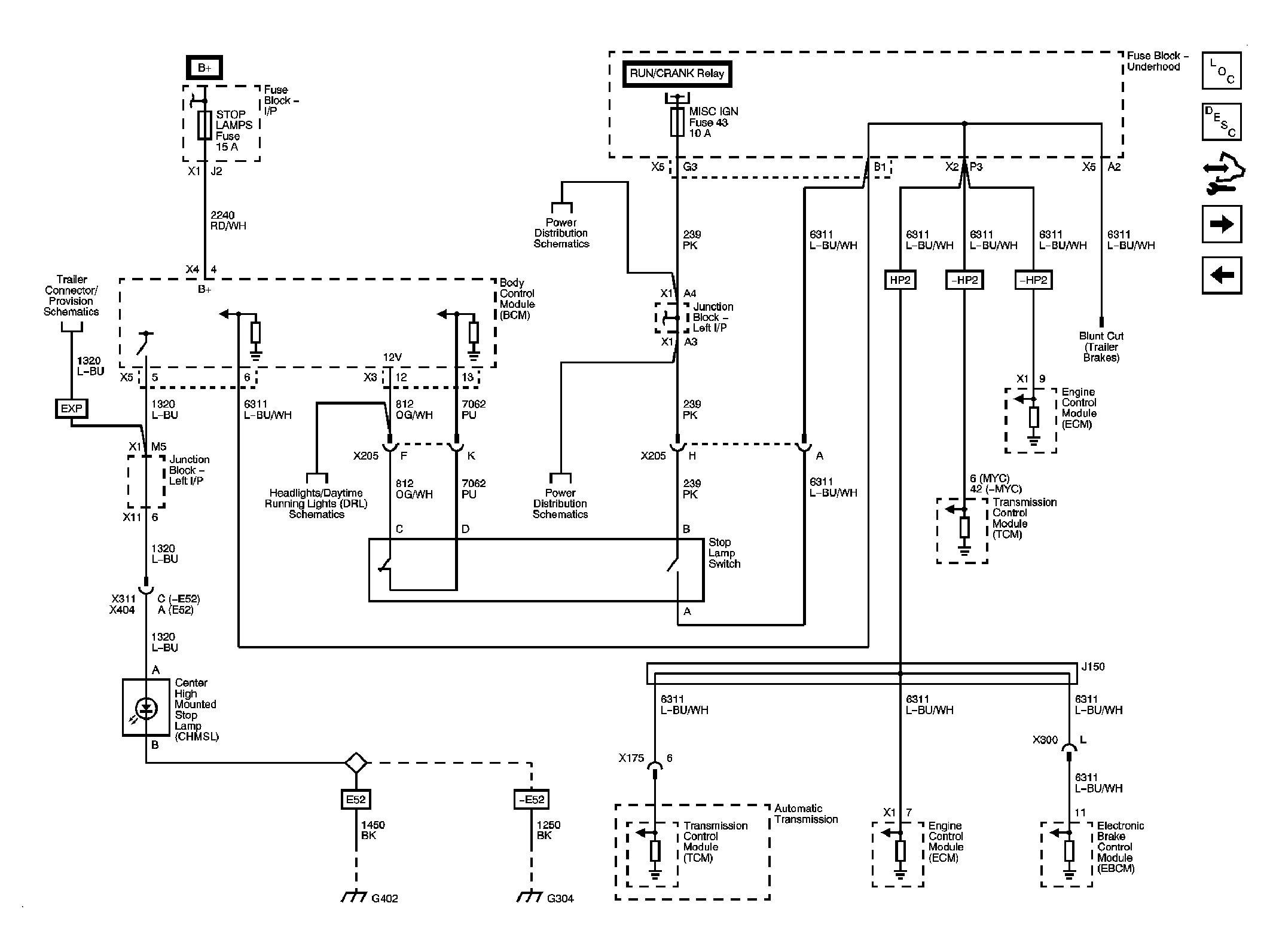

Fig 8: Stop Lamp Controls & CHMSL Schematic

GM1907083

Courtesy of GENERAL MOTORS CORP.

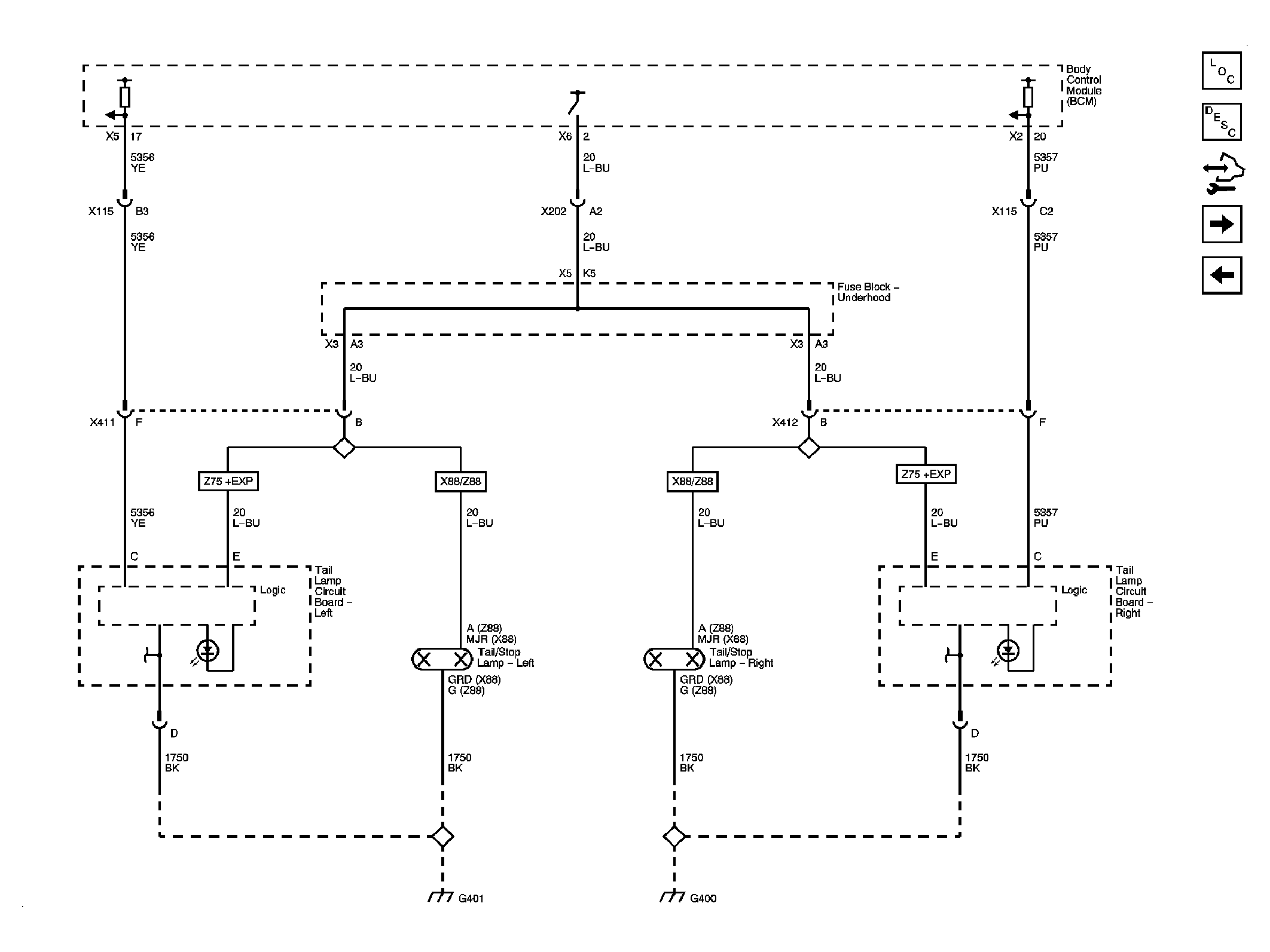

Fig 9: Stop Lamps Schematic - Z75 with EXP, X88 or Z88

GM1907088

Courtesy of GENERAL MOTORS CORP.

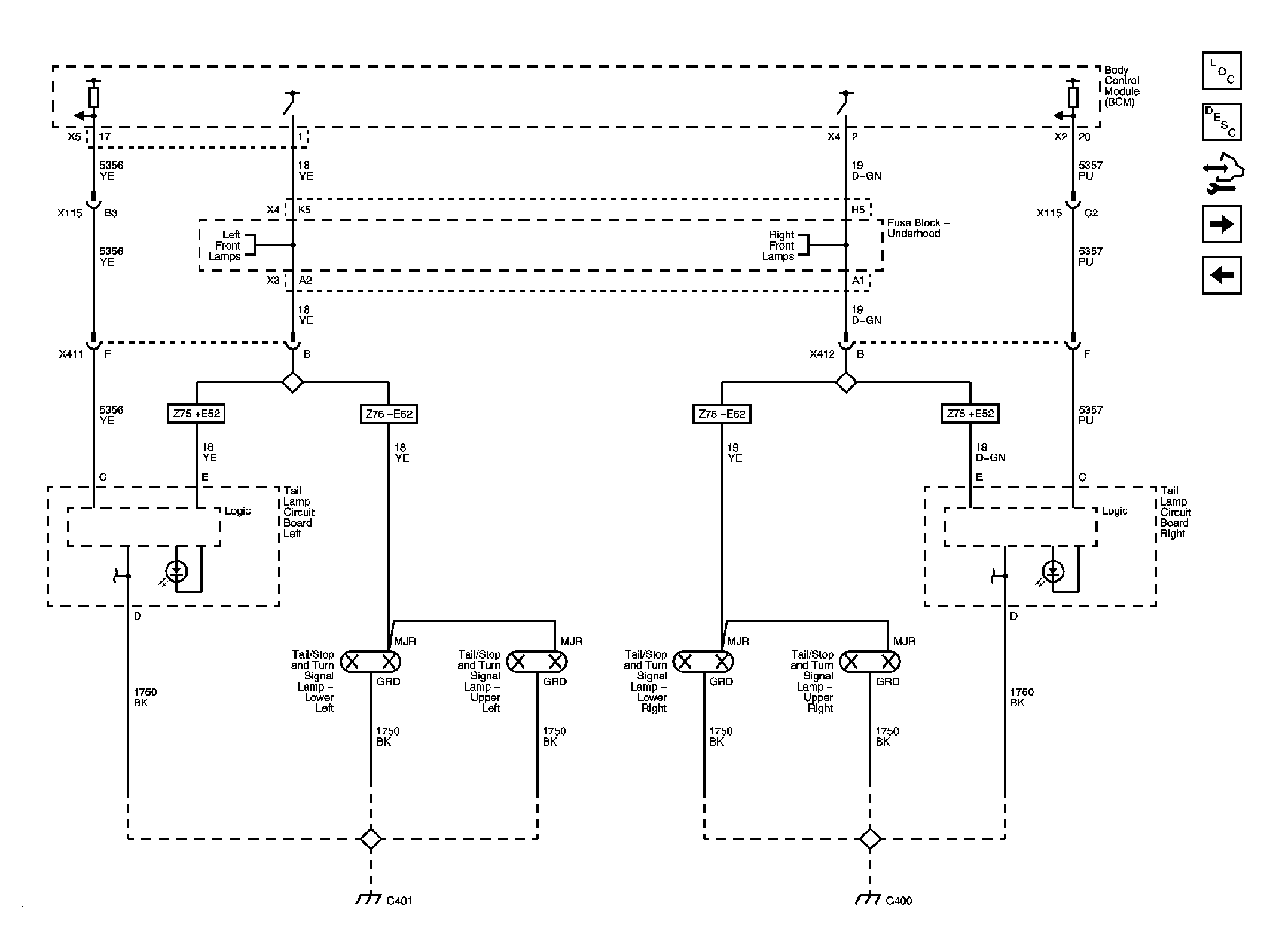

Fig 10: Stop Lamps Schematic - Domestic Z75

GM1907091

Courtesy of GENERAL MOTORS CORP.

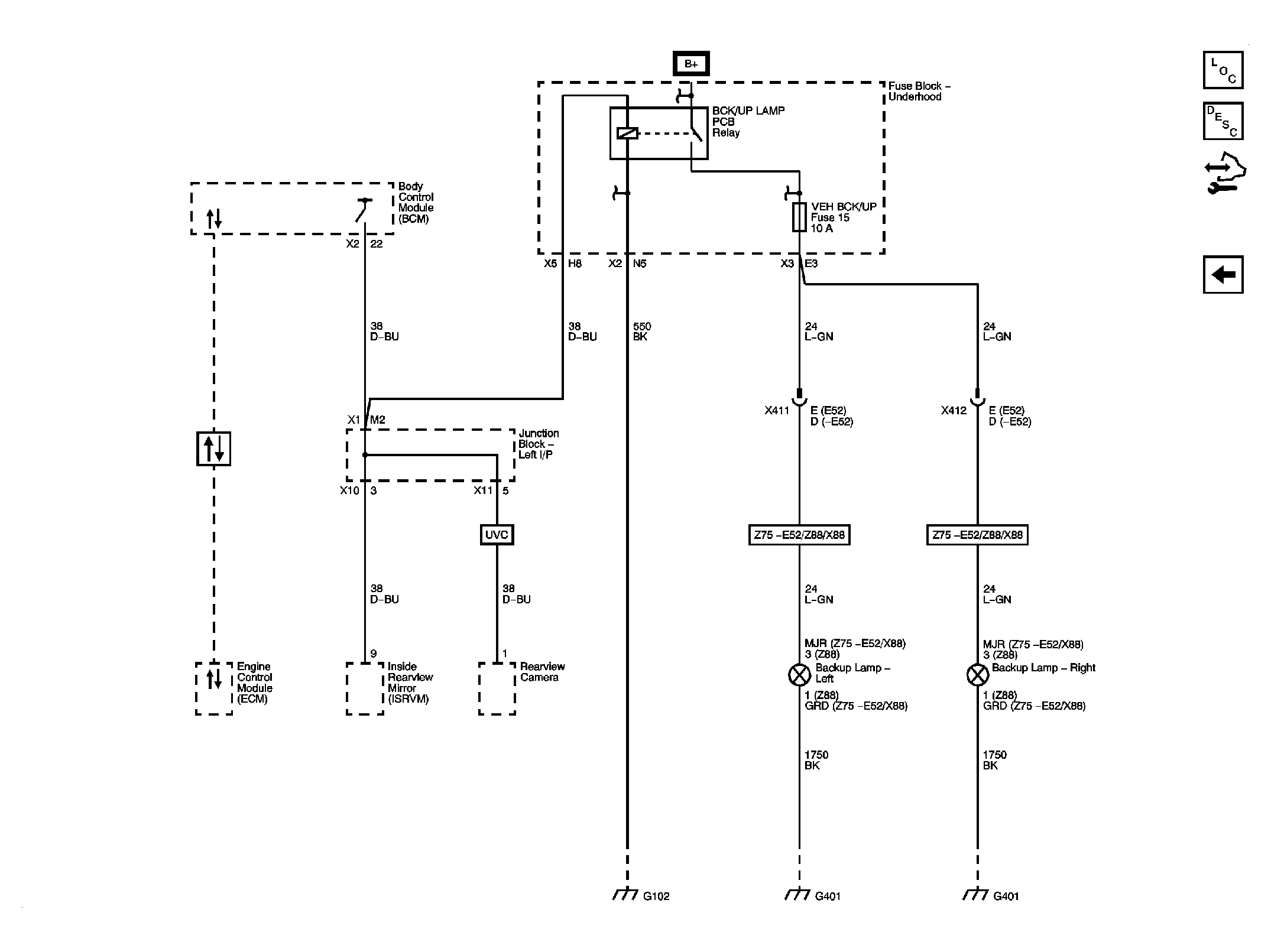

Fig 11: Backup Lamps Schematic

GM1907094

Courtesy of GENERAL MOTORS CORP.
