HVAC Component Views

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

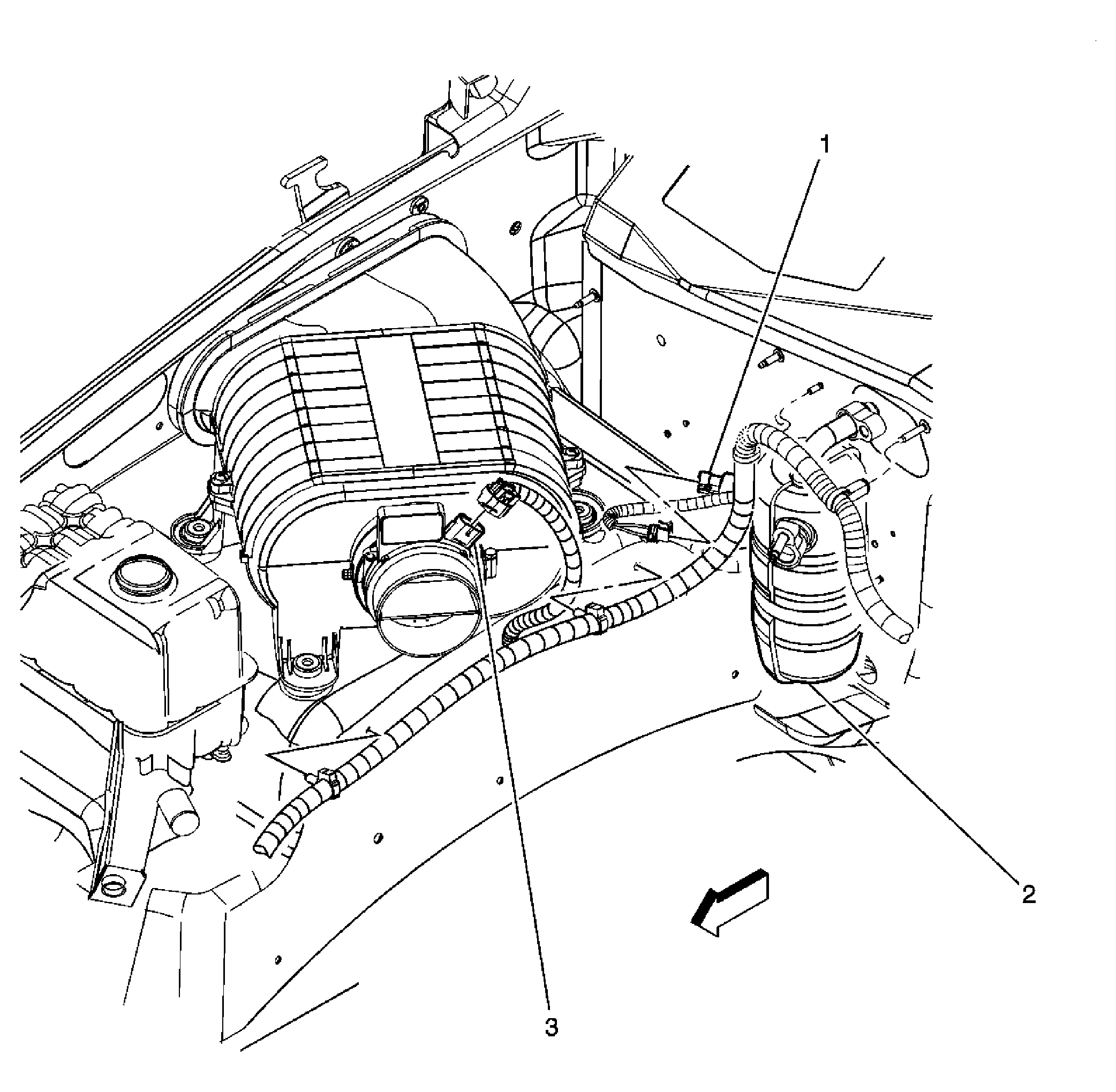

Fig 1: Right Rear of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Low Pressure Switch
2	A/C Accumulator
3	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor

Fig 2: Lower Right Side Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Condenser
2	A/C Refrigerant Pressure Sensor
3	A/C Condenser Hose
4	A/C Compressor Clutch Connector
5	A/C Compressor

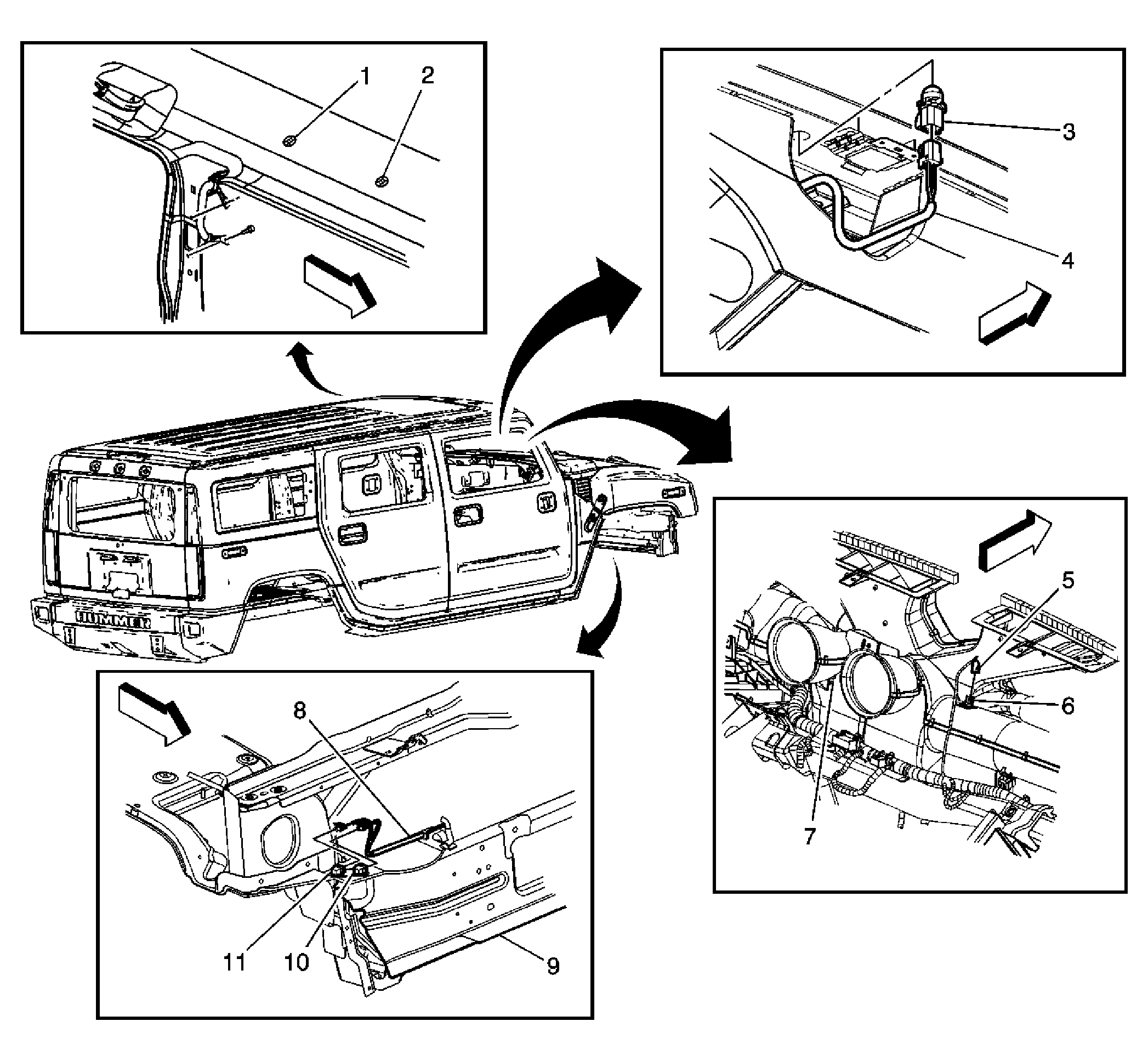

Fig 3: HVAC Subsystem Component Views (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Inside
2	Cellular Telephone Microphone
3	Ambient Light/Sunload Sensor Assembly
4	I/P Harness
5	Air Temperature Sensor Connector - Upper Right
6	Air Temperature Sensor - Upper Right
7	Air Temperature Sensor - Upper Left
8	Forward Lamp Harness
9	Radiator Support
10	Ambient Air Temperature Sensor - HVAC
11	Ambient Air Temperature Sensor - Mirror

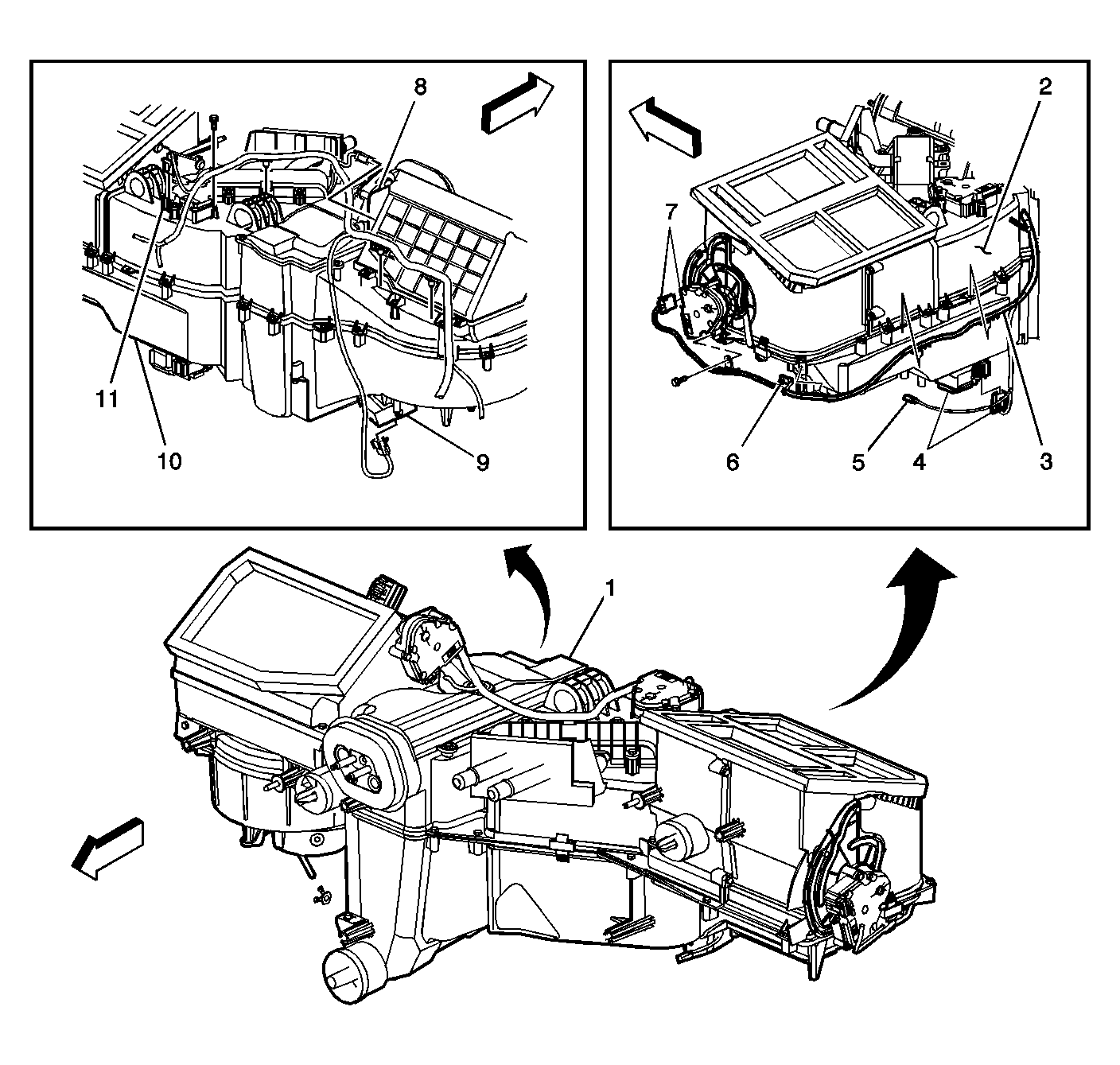

Fig 4: HVAC Subsystem Component Views (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module
2	HVAC Module
3	HVAC Harness
4	Air Temperature Actuator - Left
5	Air Temperature Sensor Connector - Lower Right
6	Air Temperature Sensor Connector - Lower Left
7	Mode Actuator
8	Recirculation Actuator
9	Blower Motor Control Processor
10	HVAC Module
11	Air Temperature Actuator - Right

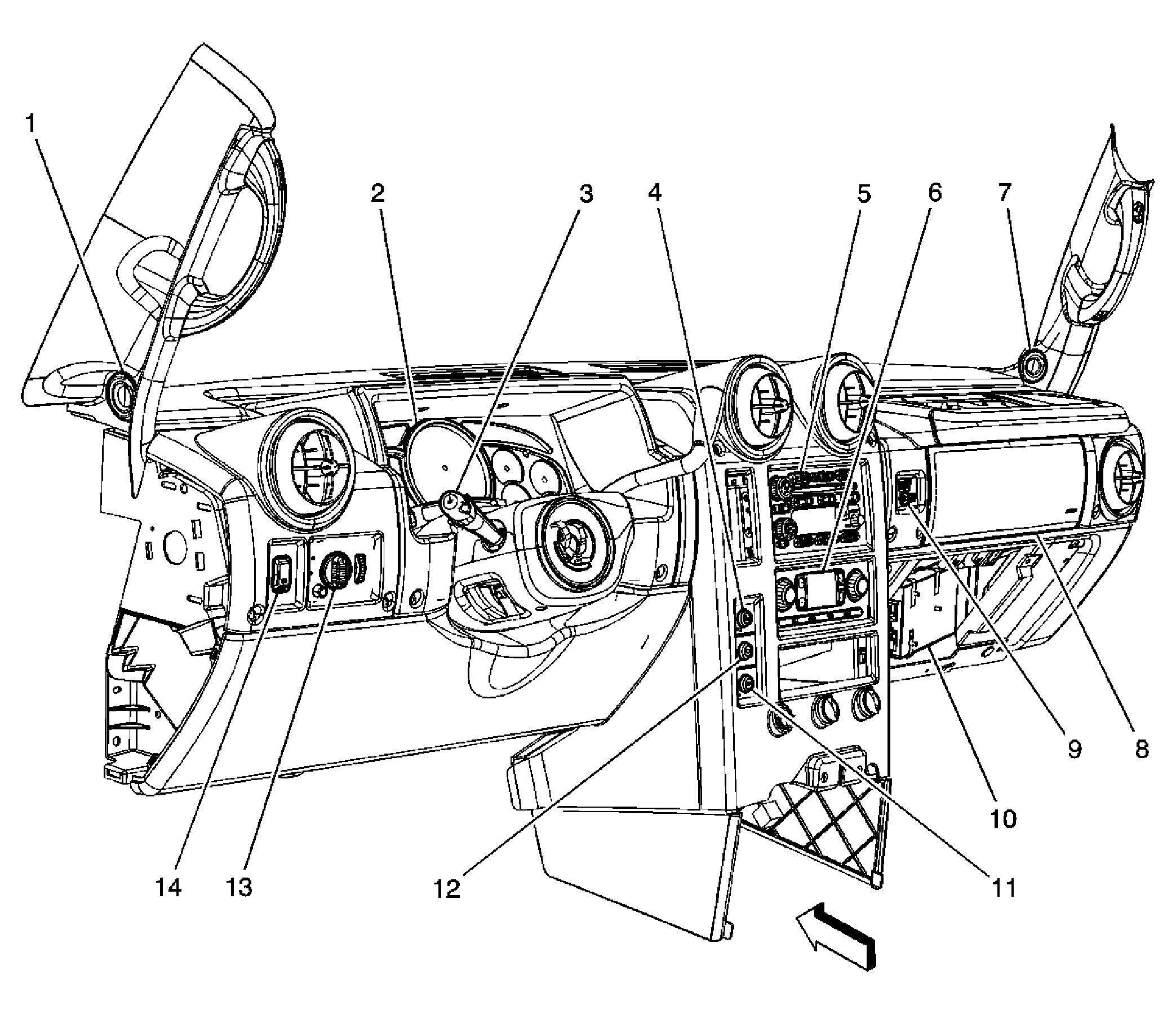

Fig 5: Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LF Tweeter
2	Instrument Cluster
3	Turn Signal/Multifunction Switch
4	Traction Control Switch
5	Radio
6	HVAC Control Module
7	Speaker - RF Tweeter
8	Inflatable Restraint I/P Module
9	Inflatable Restraint I/P Module Disable Switch
10	Digital Radio Receiver
11	Ride Height Switch (ZM6)
12	Tow/Haul Switch
13	Headlamp and Panel Dimmer Switch
14	Midgate Window Switch (SUT) or Rear Wiper/Washer Switch (Except SUT)
