Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

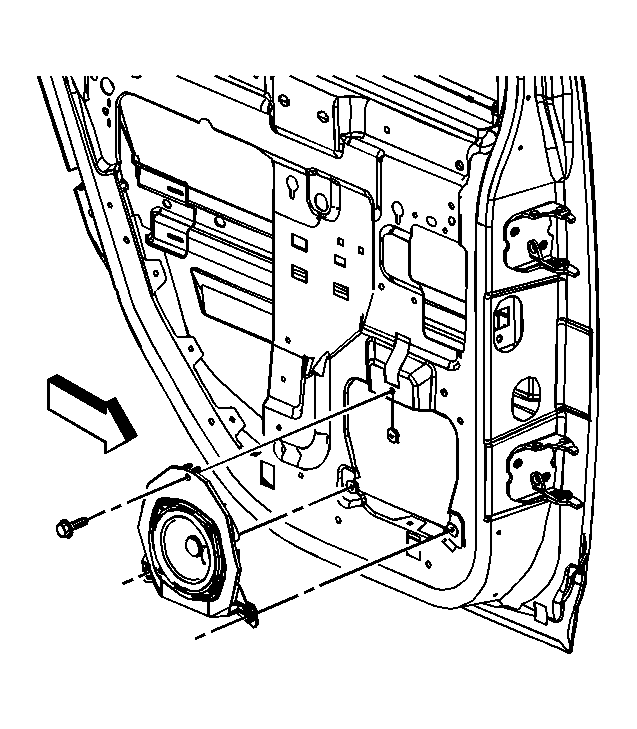

    Fig 1: Rear Door Speaker
    GM832849Courtesy of GENERAL MOTORS CORP.
  1. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Partially remove the water deflector to access the speaker bolts.
  3. Remove the bolts retaining the speaker to the door.
  4. Disconnect the electrical connector from the speaker.
  5. Remove the speaker from the vehicle.
