Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

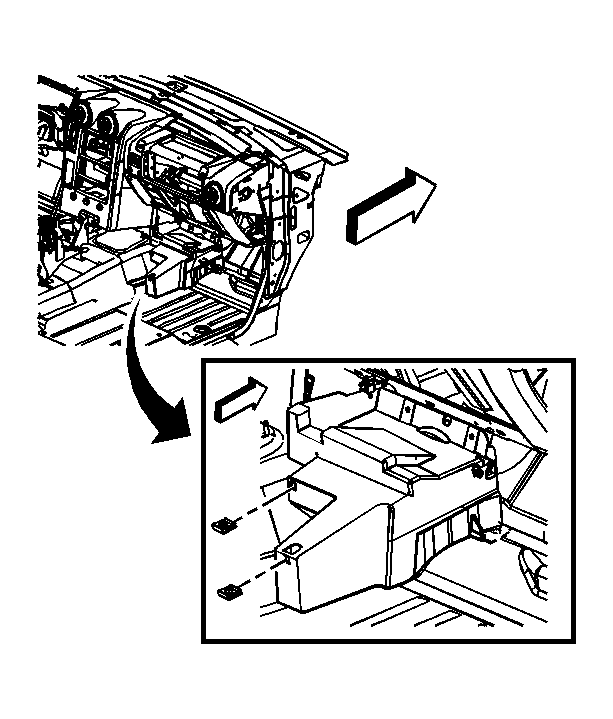

Fig 1: Front Speaker Assembly Retainer Clips

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

IMPORTANT: Do not exceed torque specification over tightening of the screws will result in the stud breaking from the front floor console.

Install the retainer clips to the speaker housing.
Tighten: Tighten the screws to 9 N.m (80 lb in).

Fig 2: Front Speaker Assembly & I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Install the front speaker assembly woofer to the I/P carrier.
Install the fasteners.
Tighten: Tighten the screws 9 N.m (80 lb in).
Install the exterior trim panel. Refer to Instrument Panel Extension Trim Plate Replacement .
Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
