C275 Steering Wheel Module Coil to Body Harness Connector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

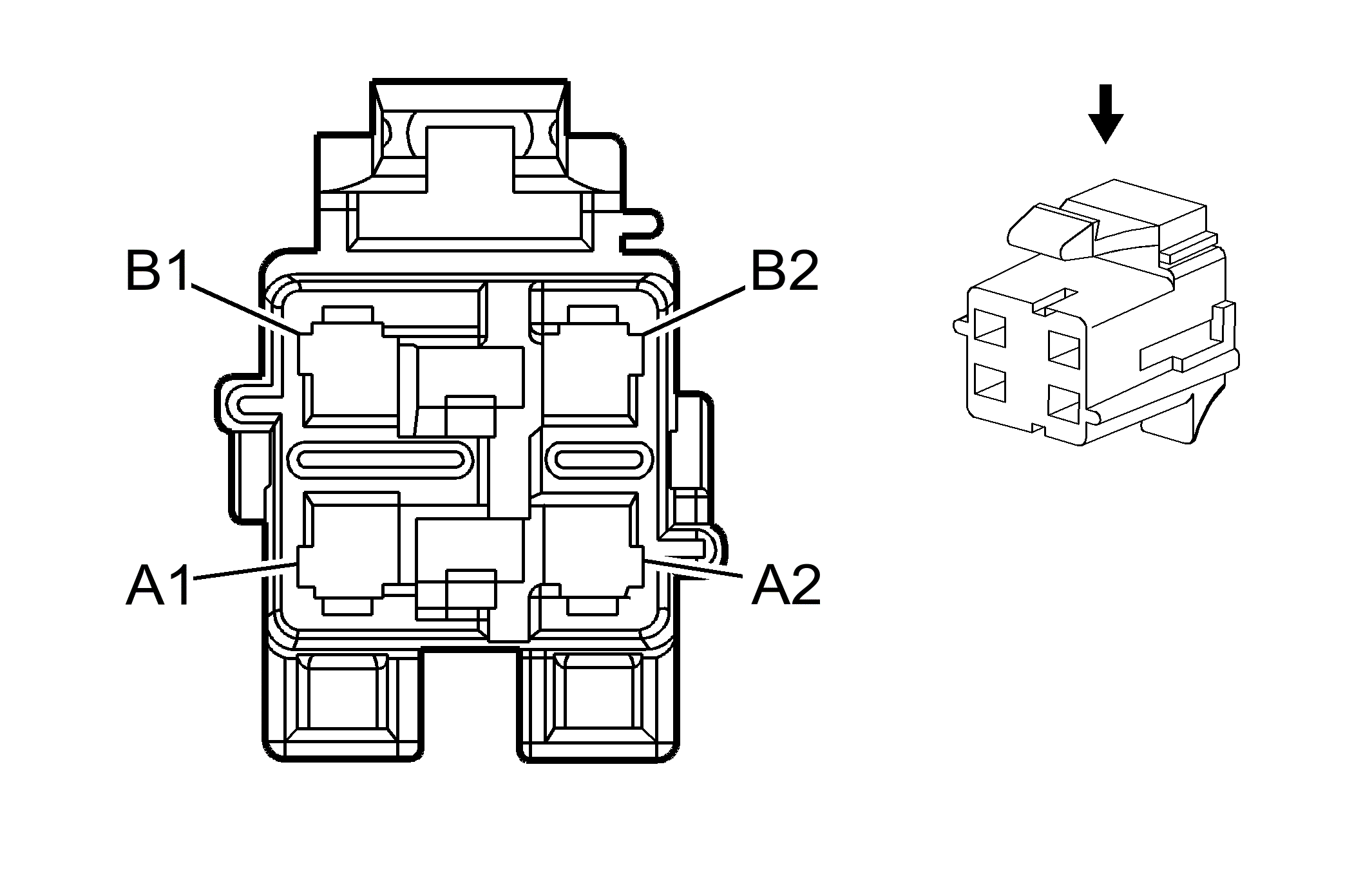

C275 Steering Wheel Module Coil to Body Harness Connector End View

GM1715215Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
C275 Steering Wheel Module Coil to Body Harness Connector Parts Information

Connector Part Information
  • OEM: 15479525
  • Service: 19149302
  • Description: 4-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • OEM: 15336476
  • Service: 15306363
  • Description: 4-Way M Metri-Pack 280 Series (YE)
Terminal Part Information
  • Terminal:TBD
  • Core/Insulation Crimp: TBD
  • Release Tool/Test Probe: TBD
 Terminal Part Information
  • Terminal:12034047/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
C275 Steering Wheel Module Coil to Body Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 TN 3021 Steering Wheel Module - Stage 1 - High Control A1 TN 3021 Steering Wheel Module - Stage 1 - High Control
A2 BN 3020 Steering Wheel Module - Stage 1 - Low Control A2 BN 3020 Steering Wheel Module - Stage 1 - Low Control
B1 WH 3023 Steering Wheel Module - Stage 2 - High Control B1 WH 3023 Steering Wheel Module - Stage 2 - High Control
B2 PK 3022 Steering Wheel Module - Stage 2 - Low Control B2 PK 3022 Steering Wheel Module - Stage 2 - Low Control
