C203 Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (Except Y91) to Headliner Harness Connector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

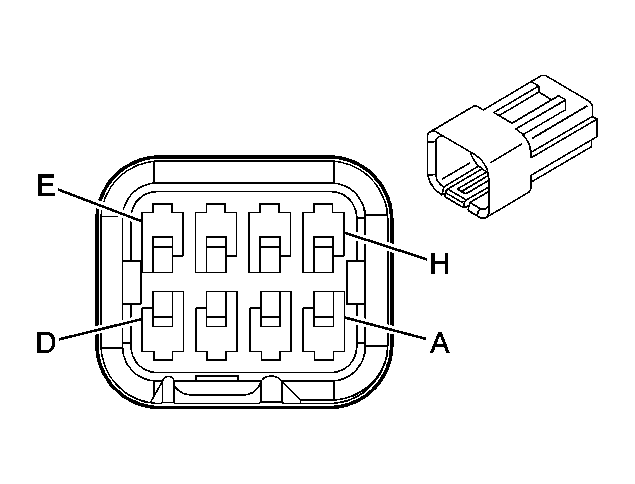

C203 Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (Except Y91) to Headliner Harness Connector End View

GM62439Courtesy of GENERAL MOTORS CORP.
GM1711003Courtesy of GENERAL MOTORS CORP.
C203 Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (Except Y91) to Headliner Harness Connector Parts Information

Connector Part Information
  • OEM: 12047886
  • Service: 12101822
  • Description: 8-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12045688
  • Service: 12101827
  • Description: 8-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:TBD
  • Core/Insulation Crimp: TBD
  • Release Tool/Test Probe: TBD
 Terminal Part Information
  • Terminal:12047581/2
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
C203 Instrument Panel Harness (Y91) or Instrument Panel Extension Harness (Except Y91) to Headliner Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE/BK - Keypad Green LED Signal A YE/BK 2516 Keypad Green LED Signal
B BN/WH - Keypad Red LED Signal B BN/WH 2517 Keypad Red LED Signal
C L-GN/BK - Keypad Supply Voltage C L-GN/BK 2515 Keypad Supply Voltage
D D-GN/WH - Keypad Signal D D-GN/WH 2514 Keypad Signal
E - - Not Used E - - Not Used
F GY - Cellular Microphone Signal F GY 655 Cellular Microphone Signal
G BARE - Ground G BARE 514 Ground
H - - Not Used H - - Not Used
