Track Bar Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

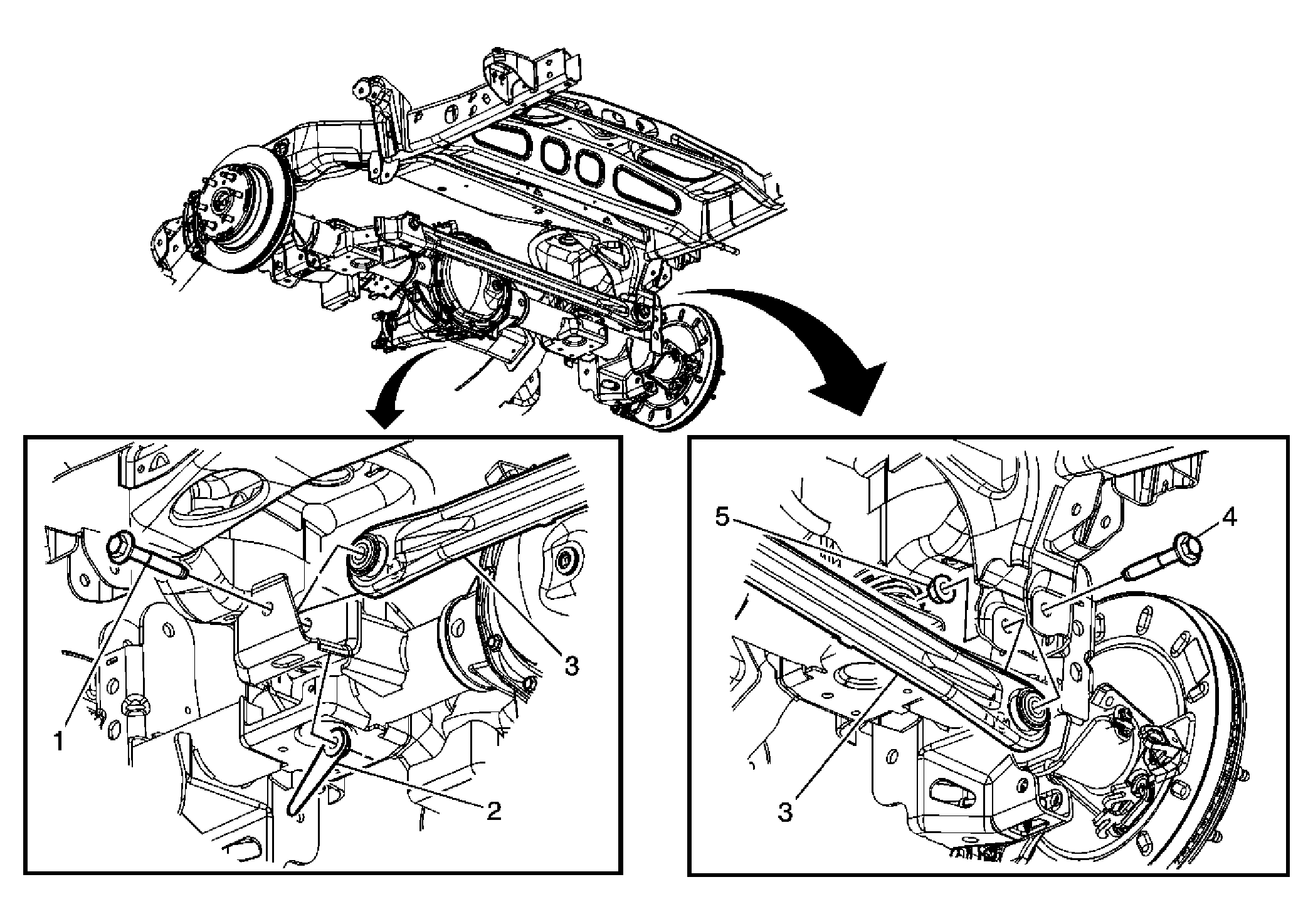

Fig 1: View Of Track Bar & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Mounting Bolt NOTE: Refer to Fastener Notice . Tighten: 107 N.m (77 lb ft) Tip: Support the rear driveaxle before removing either of the mounting bolts. Finger tighten the mounting bolt. This will allow for movement in the track bar to align the opposite end mounting bolt hole with the mounting bolt.
2	Nut
3	Track Bar Tip: Disconnect the park brake cable from the track bar.
4	Mounting Bolt Tighten: 140 N.m (103 lb ft)
5	Nut
