Displays and Gauges Component Views

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LF Tweeter
2	Instrument Cluster
3	Turn Signal/Multifunction Switch
4	Traction Control Switch
5	Radio
6	HVAC Control Module
7	Speaker - RF Tweeter
8	Inflatable Restraint I/P Module
9	Inflatable Restraint I/P Module Disable Switch
10	Digital Radio Receiver
11	Ride Height Switch (ZM6)
12	Tow/Haul Switch
13	Headlamp and Panel Dimmer Switch
14	Midgate Window Switch (SUT) or Rear Wiper/Washer Switch (Except SUT)

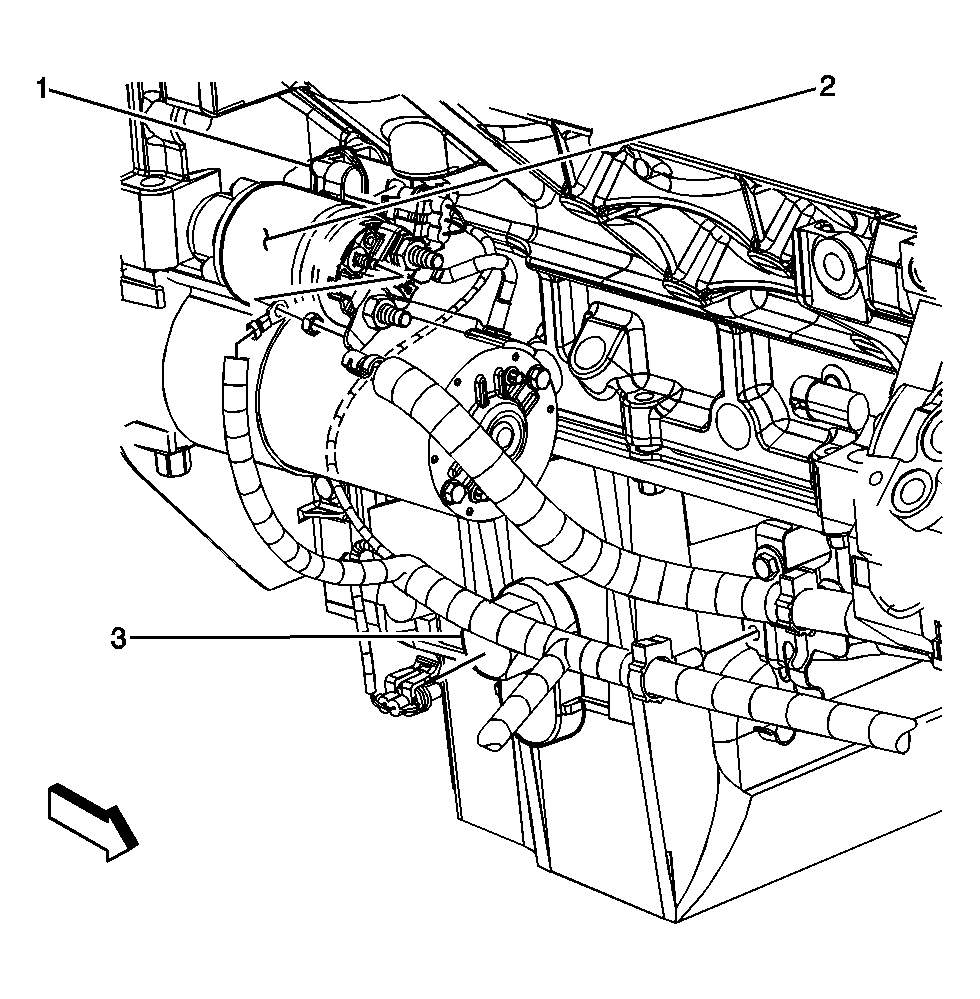

Fig 2: Lower Right Side Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor Connector
2	Starter Motor
3	Engine Oil Level Switch

Fig 3: Engine Oil Pressure (EOP) Sensor And CMP Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Sensor
2	Camshaft Position (CMP) Sensor
3	Camshaft Position (CMP) Sensor Connector

Fig 4: Steering Wheel and Column Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch Assembly - Upper Left
2	Passlock Sensor Connector
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Ignition Lock Cylinder Control Actuator Connector
6	Ignition Switch
7	Ignition Key Cylinder
8	Steering Wheel Control Switch Assembly - Upper Right
9	Horn Switch
10	Steering Wheel Control Switch Assembly - Lower Right
11	C277
12	Steering Wheel Control Switch Assembly - Lower Left
13	Turn Signal/Multifunction Switch
