Transmission Fluid Pan Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

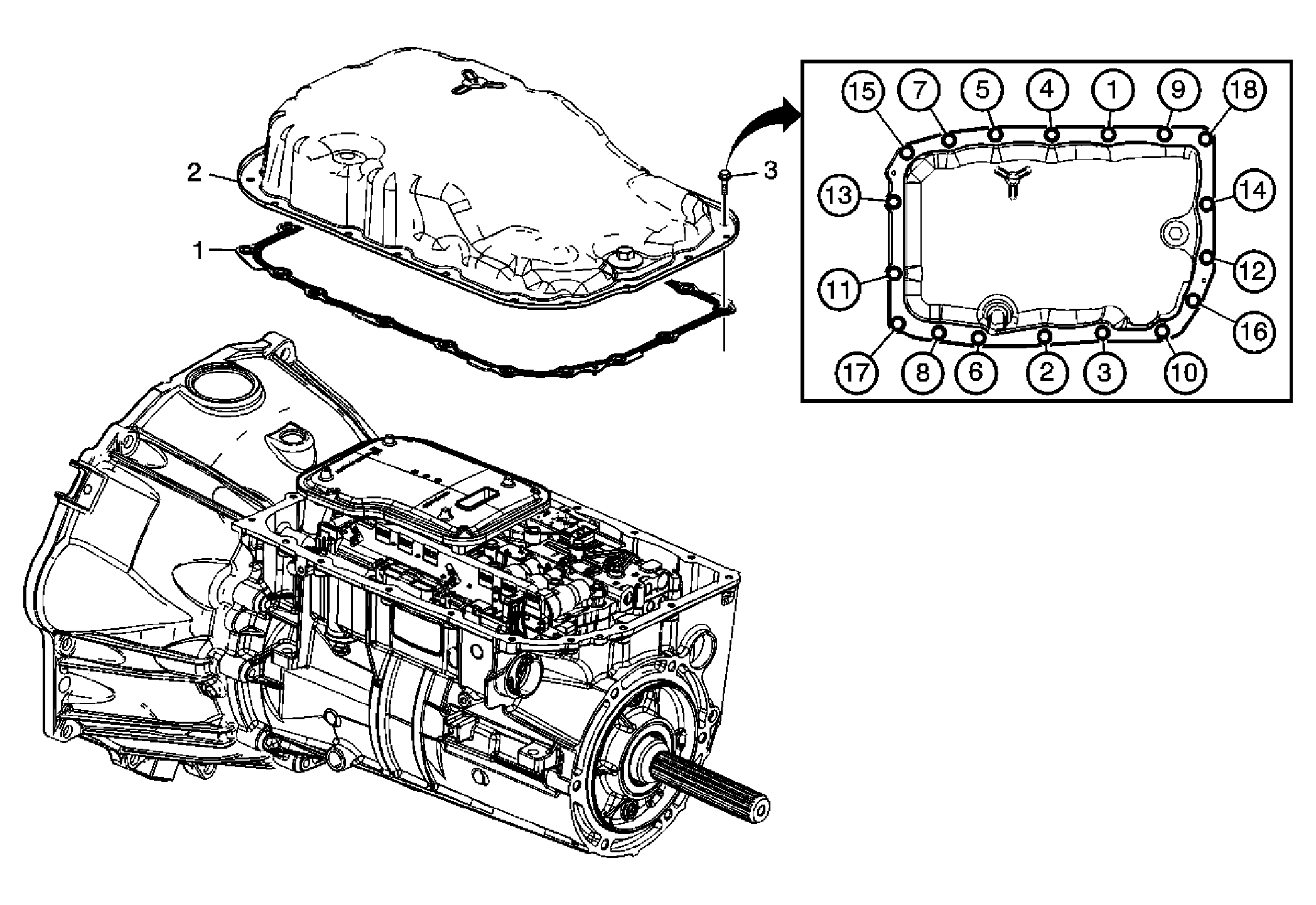

Fig 1: View Of Fluid Pan Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Fluid Pan Gasket Tip: The fluid pan gasket is reusable. Inspect the gasket to determine if it may be reused. If the gasket is stuck to the case or pan, it should be replaced.
2	Fluid Pan Assembly
3	Fluid Pan Bolts M6 x 20 (Quantity: 18) Tighten: Tighten to 9 N.m (80 lb in) in sequence shown.
