Torque Converter Fluid Seal Replacement

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

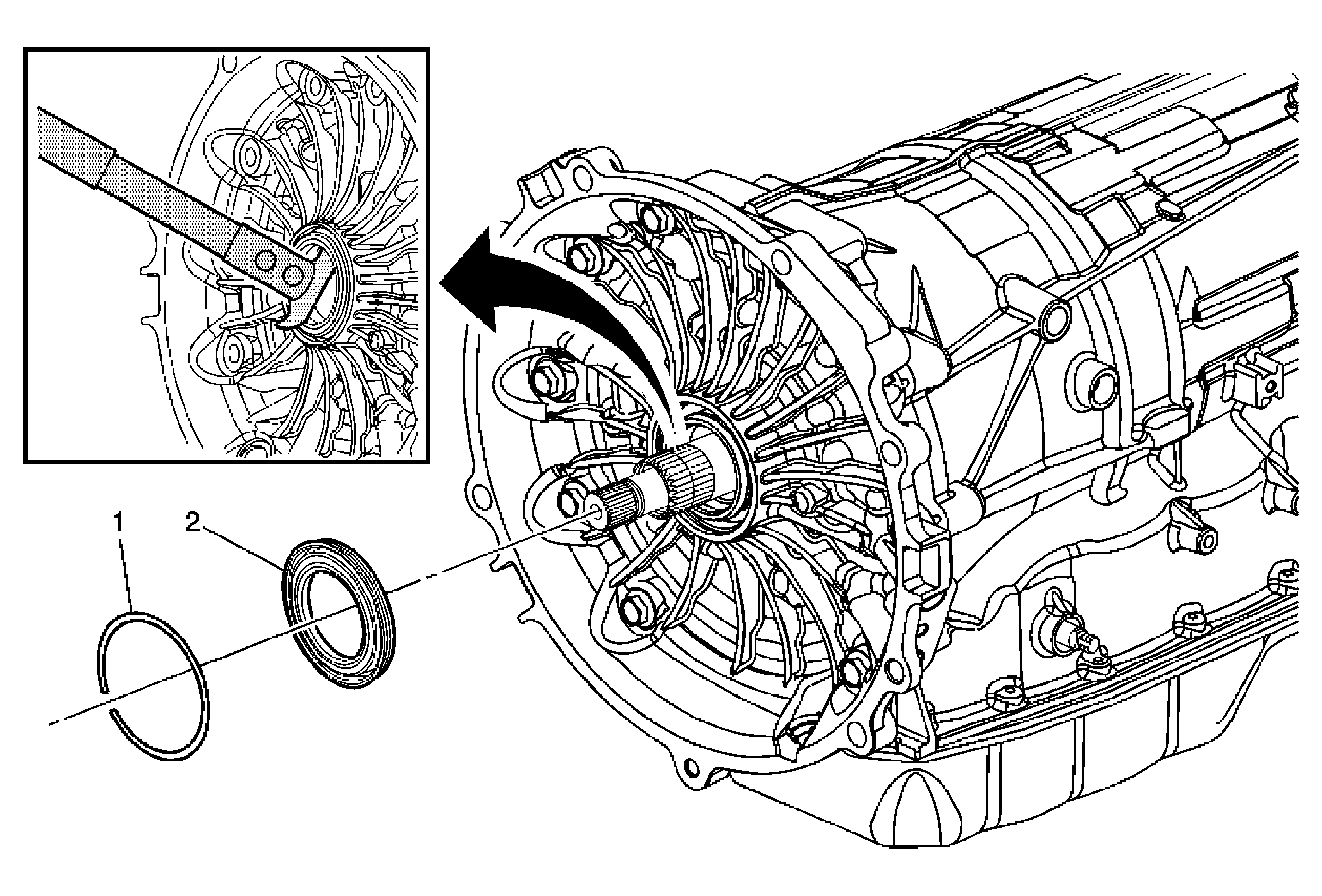

Fig 1: View Of Torque Converter Seal & Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the torque converter. Refer to Torque Converter Replacement .
1	Torque Converter Fluid Seal Retaining Ring
2	Torque Converter Fluid Seal Tip: Remove seal using J 45000 Seal Remover. See Special Tools .

Fig 1: View Of Torque Converter Fluid Seal Assembly & Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Torque Converter Fluid Seal Replacement

Callout	Component Name
1	Torque Converter Fluid Seal Retaining Ring
2	Torque Converter Fluid Seal Assembly Special Tool: J 45000 Seal Remover. See Special Tools .
