Oil Cooler Pipe Seals Replacement

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

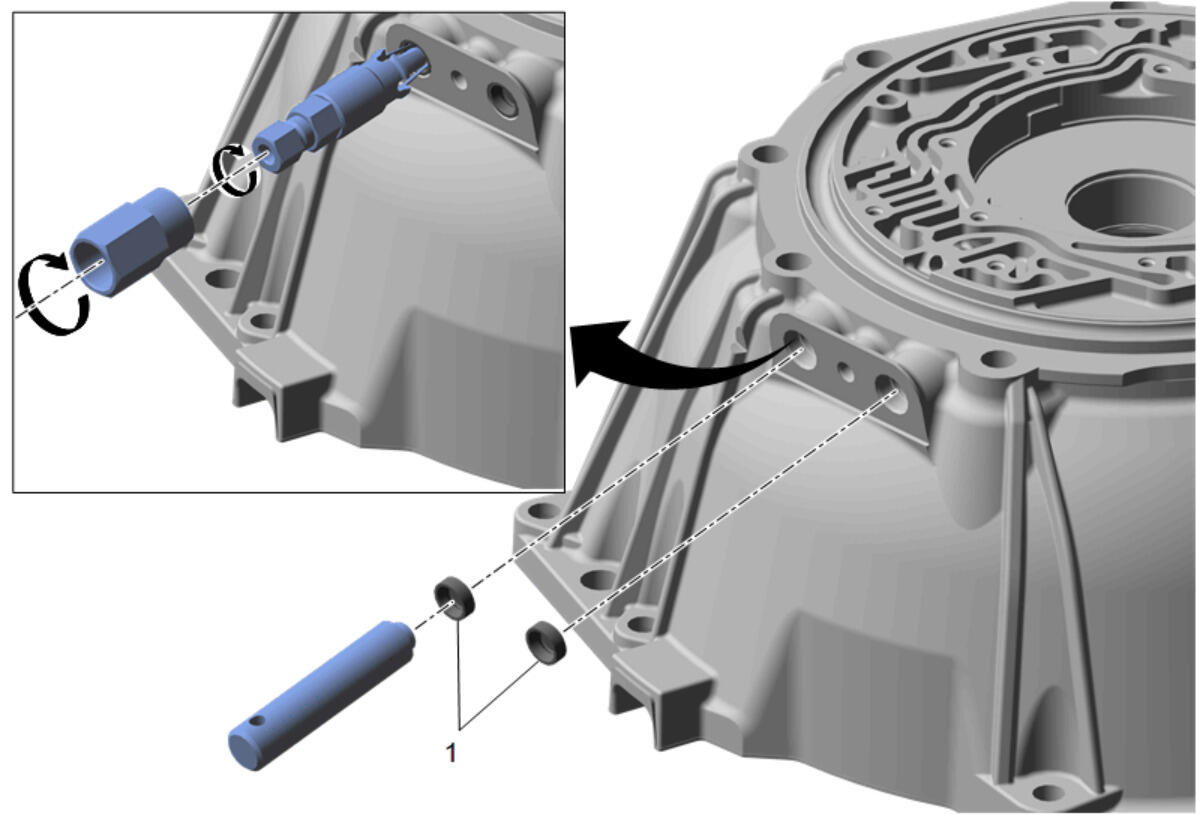

Fig 1: View Of Transmission Fluid Cooler Pipe Fitting Seals

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trans Fluid Cooler Pipe Fitting Seals (Quantity: 2) Special Tools DT 47770 Seal Installer. See Special Tools . J 45201 Cooler Line Seal Remover. See Special Tools .
