Center Support, Output Carrier and Output Shaft Removal

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

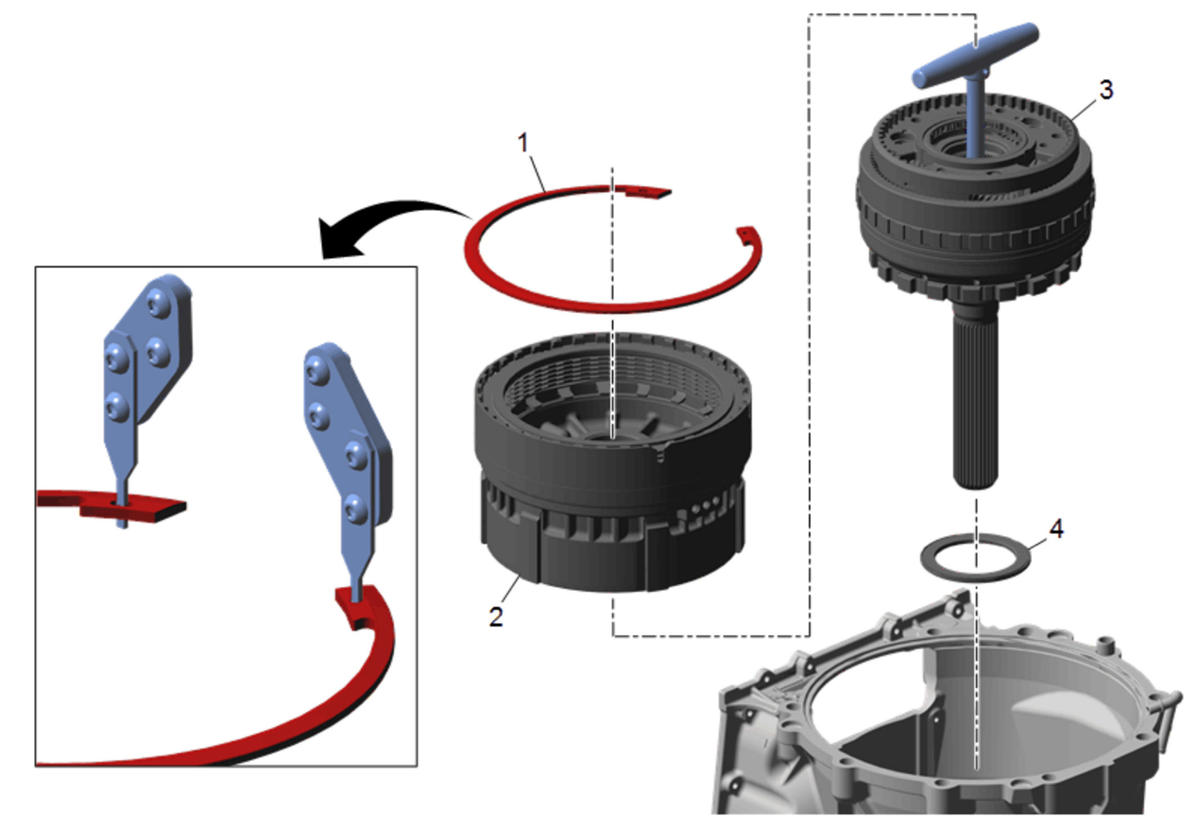

Fig 1: Center Support, Output Carrier & Output Shaft Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Support Retaining Ring CAUTION: Use care when removing or installing the retaining ring. Ensure the J 45126 and DT 47773 are installed properly onto the retaining ring or bodily injury may occur. Tip: To release tension on the retaining ring, place the retaining ring flat on the floor and step on it, then remove the tool. Special Tools DT 47773 Snap Ring Pliers Adapter Set. See Special Tools . J 45126 Snap Ring Pliers. See Special Tools .
2	Center (with 2-6 Low and Reverse Clutch) Support Assembly
3	Output Carrier Assembly and Output Shaft Assembly NOTE: Ensure the DT 47786 is completely threaded into the output shaft assembly. Due to the weight of the assembly, incomplete threading may cause the assembly to break free from the DT 47786, causing component damage. Special Tool: DT 47786 Output Carrier/Shaft Lifting Tool. See Special Tools .
4	Output Shaft Thrust Bearing Assembly
