Case Extension Seal Replacement

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

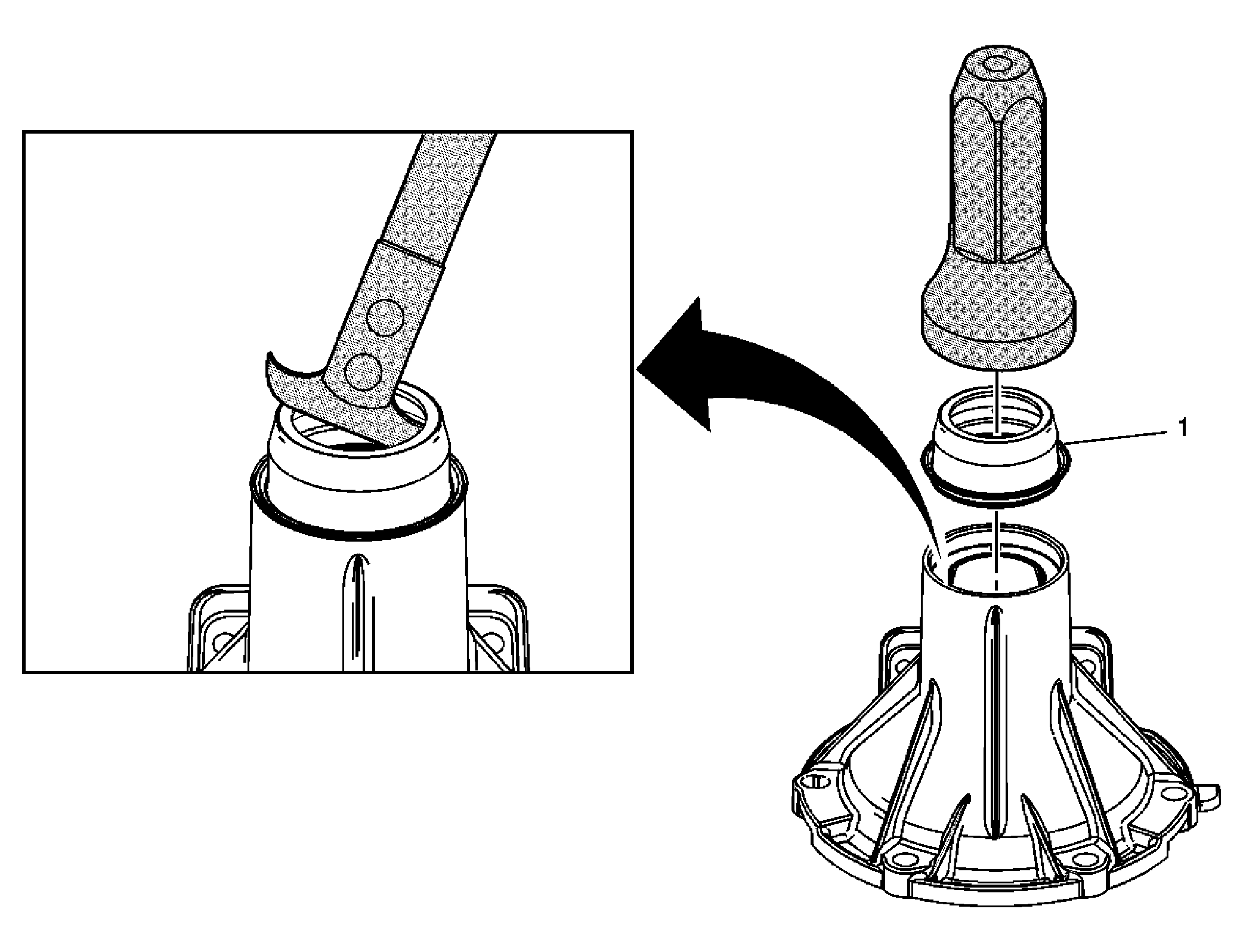

Fig 1: View Of Output Shaft Seal Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Shaft Seal Assembly Special Tools J 38869 Output Shaft Seal Installer J 45000 Seal Remover. See Special Tools .
