Input Speed Sensor (ISS)

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Cadillac Escalade EXT, 2007 Cadillac Escalade ESV, and 2007 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

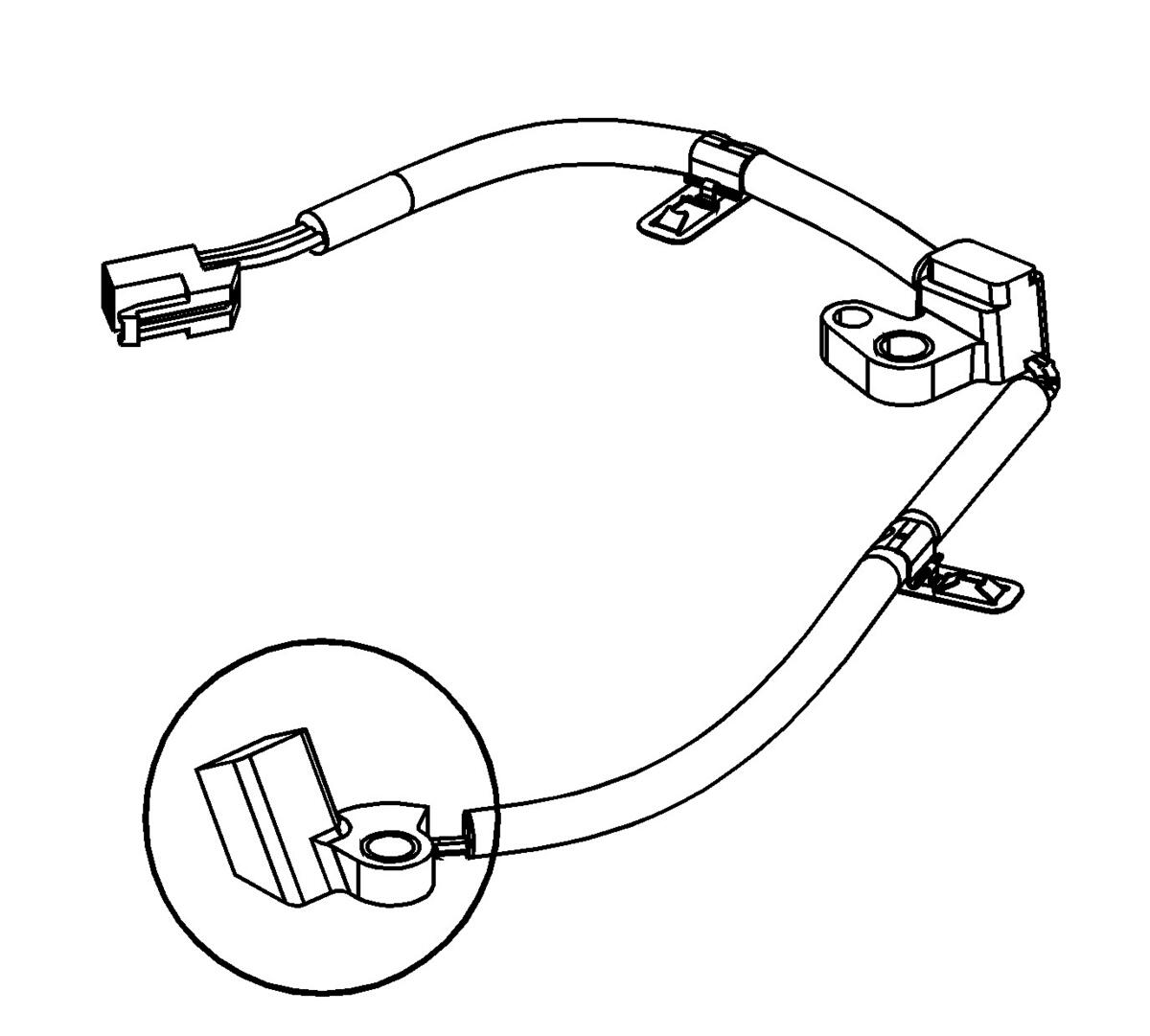

Fig 1: Identifying Input Speed Sensor (ISS)

Courtesy of GENERAL MOTORS CORP.

The input speed sensor (ISS) is a hall-effect type sensor. The ISS mounts to the control valve upper body assembly and connects to the control solenoid (w/body and TCM) valve assembly through a wire harness and connector. The sensor faces the 1-2-3-4 and 3-5-R clutch housing machined teeth surface. The sensor receives 8.3-9.3 volts on the ISS/OSS Supply Voltage circuit from the TCM. As the 1-2-3-4 and 3-5-R clutch housing rotates, the sensor produces a signal frequency based on the machined surface of the 1-2-3-4 and 3-5-R clutch housing. This signal is transmitted through the ISS signal circuit to the control solenoid (w/body and TCM) valve assembly. The control solenoid (w/body and TCM) valve assembly uses the ISS signal to determine line pressure, transmission shift patterns, torque converter clutch (TCC) slip speed and gear ratio.
