Installation Procedure

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Input & Output Speed Sensors
    GM686957Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the input speed sensor seal with automatic transmission fluid.
  2. Install the input speed sensor (1).
    3. NOTE: Refer to Fastener Notice .
  3. Install the input speed sensor bolt.

    Tighten:  Tighten the bolt to 11 N.m (96 lb in).

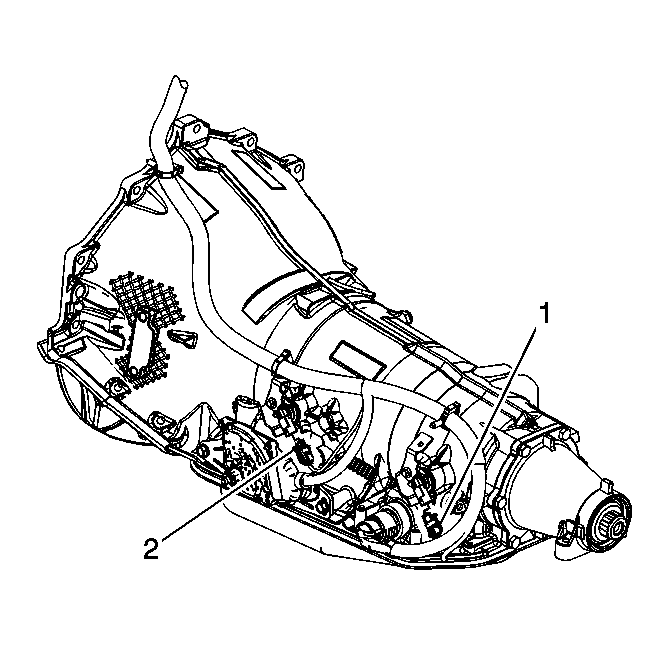

    4. Fig 2: View Of Input Speed Sensor & Electrical Connector
    GM1709733Courtesy of GENERAL MOTORS CORP.
  4. Connect the input speed sensor electrical connector (2).
  5. Lower the vehicle.
