Transmission Holding Fixture Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3289-20 Holding Fixture Base Assembly. See Special Tools .
J 8763-02 Holding Fixture. See Special Tools .
J 38655 Holding Fixture Adapter. See Special Tools .

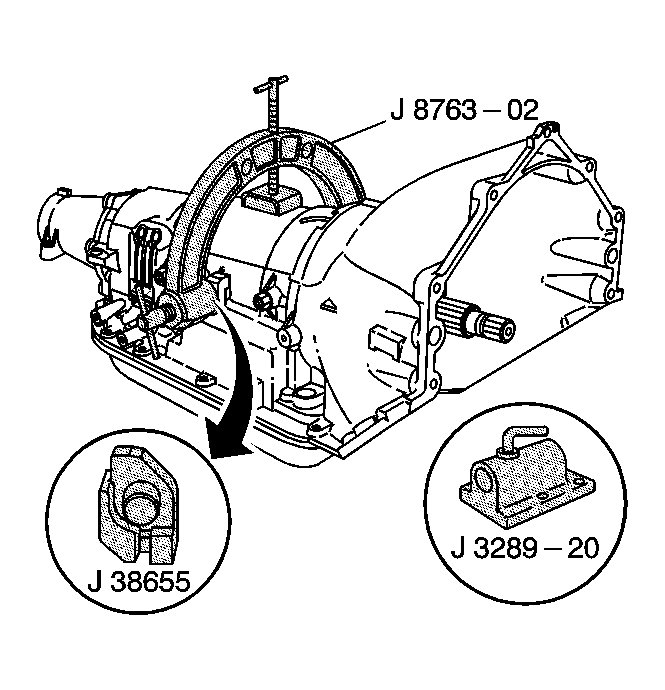

Fig 1: Installing Holding Fixtures On Transmission

Courtesy of GENERAL MOTORS CORP.

Install the J 8763-02 and the J 38655 onto the transmission assembly. See Special Tools .
Install the transmission assembly and the J 8763-02 into the J 3289-20 . See Special Tools .
Lock the J 8763-02 in place with the locking pin. See Special Tools .
