Transmission Fluid Pan Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

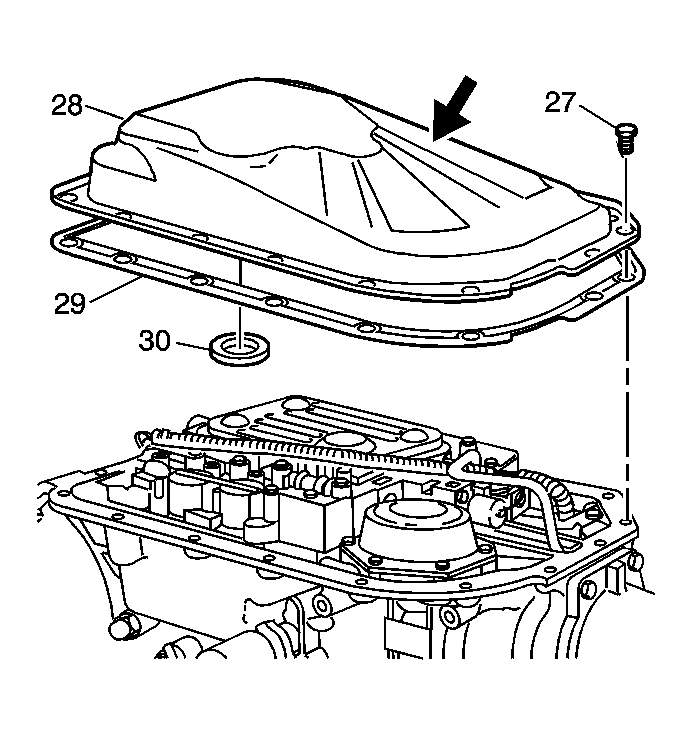

    Fig 1: View Of Transmission Oil Pan, Gasket & Bolts
    GM1499979Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: You may reuse the transmission oil pan gasket (29).
  1. Install the transmission oil pan gasket (29).
  2. Install the transmission oil pan magnet (30) into the transmission oil pan (28).
    3. NOTE: Position the wiring harness properly when installing the transmission oil pan or it may be crushed between the valve body and the oil pan.
  3. Install the transmission oil pan (28).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the transmission oil pan bolts (27).

    Tighten:  Tighten the bolts to 24 N.m (18 lb ft).
