Transmission Converter Cover Replacement

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

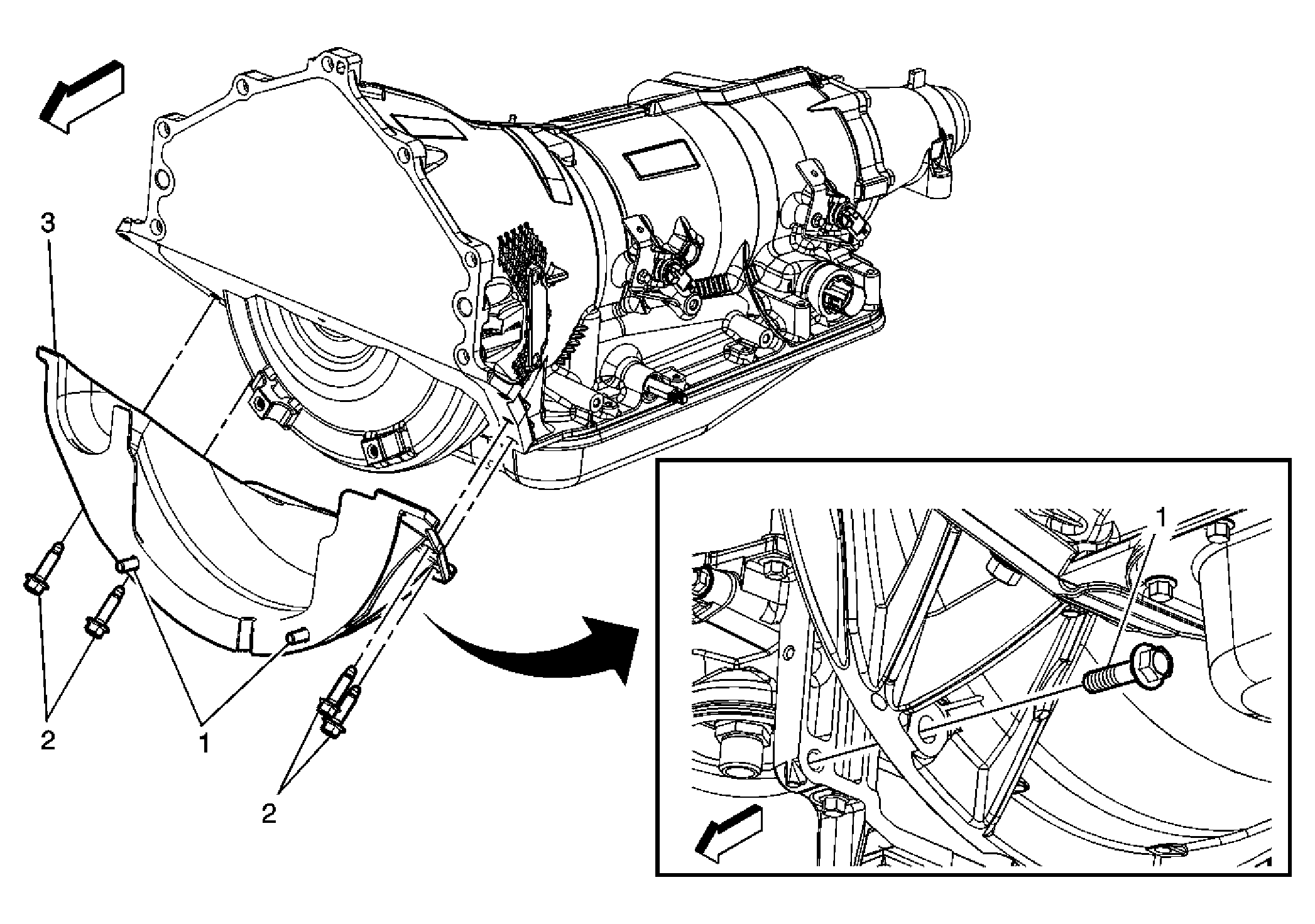

Fig 1: View Of Torque Converter Cover & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Torque Converter Cover Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Torque Converter Cover Bolt (Qty: 4) Tighten: 25 N.m (18 lb ft)
3	Torque Converter Cover
