Tools Required

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

J 25025-5 Dial Indicator Mounting Post - M6 x 1.00

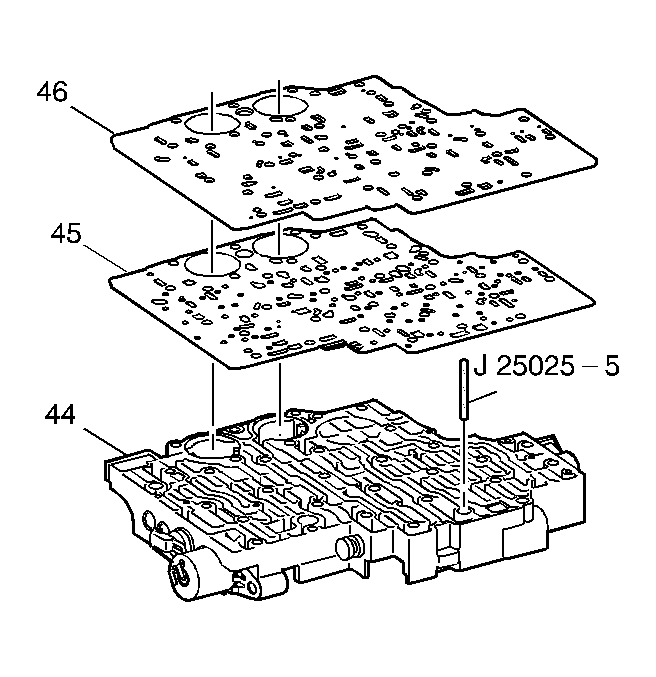

Fig 1: Installing J 25025-5 Into Control Valve Body Bolt Hole

Courtesy of GENERAL MOTORS CORP.

Install the J 25025-5 into the control valve body bolt hole where the manual shaft detent roller and spring assembly is mounted.
Install the control valve body gasket (45).
Install the control valve body spacer plate (46).

Fig 2: Installing Accumulator Housing Gasket

Courtesy of GENERAL MOTORS CORP.

Install the accumulator housing gasket (47).
Install the 3rd clutch accumulator piston spring (50). This spring is the longer of the 2 accumulator springs.
Install the 4th clutch accumulator piston spring (49).
Install the 3rd and 4th clutch accumulator housing (51) onto the control valve assembly (44).
Install the 6 3rd and 4th clutch accumulator housing bolts (53). Tighten the bolts finger tight and start from one end of the accumulator housing toward the opposite end.

Fig 3: Tightening Sequence For 3rd & 4th Clutch Accumulator Housing Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the 3rd and 4th clutch accumulator housing bolts (53) in the order shown.
Tighten: Tighten the bolts to 11 N.m (97 lb in).
Remove the J 25025-5 .
