Speed Sensor Assembly Removal

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

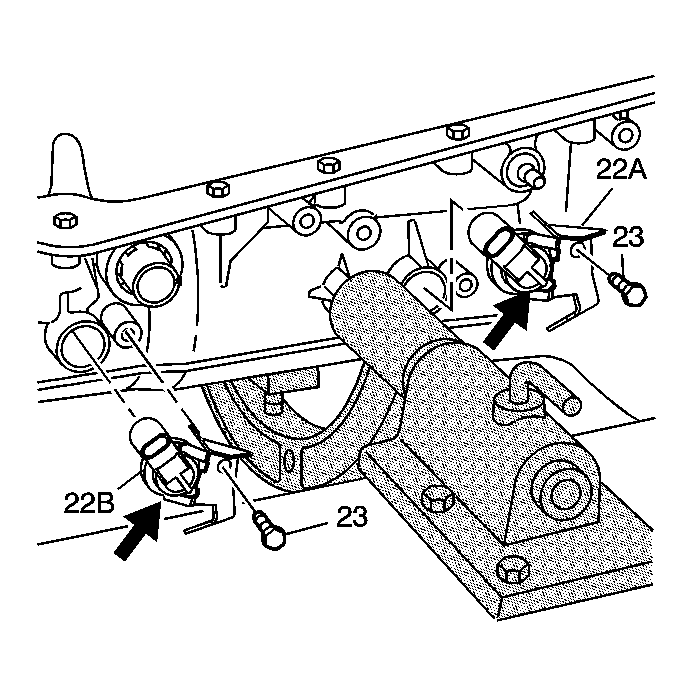

    Fig 1: Locating Speed Sensor Assembly
    GM181638Courtesy of GENERAL MOTORS CORP.
  1. Remove the input speed sensor bolt (23).
  2. Remove the input speed sensor (22A).
  3. Remove the output speed sensor bolt (23).
  4. Remove the output speed sensor (22B), (output speed sensor plug on 4WD model).
  5. Inspect the speed sensors for damage.
