Speed Sensor Assembly Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

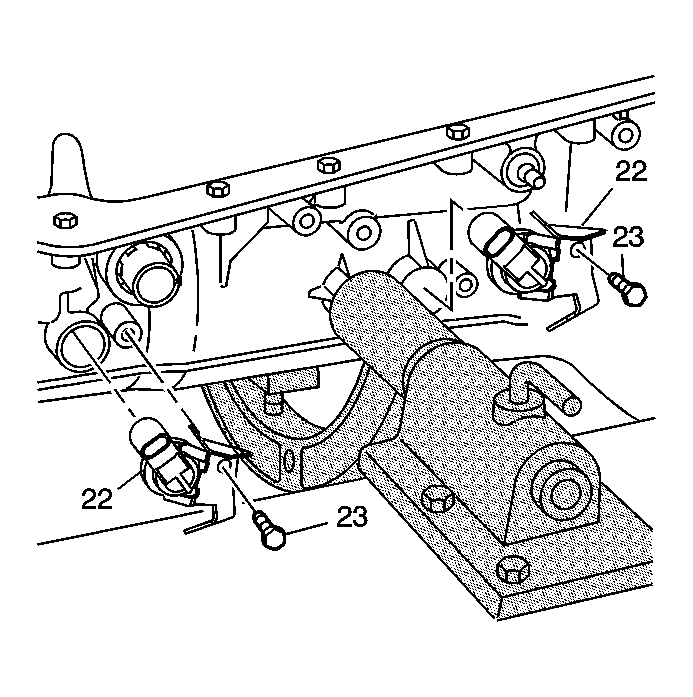

    Fig 1: Installing Speed Sensor Assemblies
    GM181639Courtesy of GENERAL MOTORS CORP.
  1. Install the input and output speed sensors (22), (output speed sensor plug-4WD) into the transmission case.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the input and output speed sensor bolts (23).

    Tighten:  Tighten the bolts to 11 N.m (97 lb in).
