Parking System Components Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

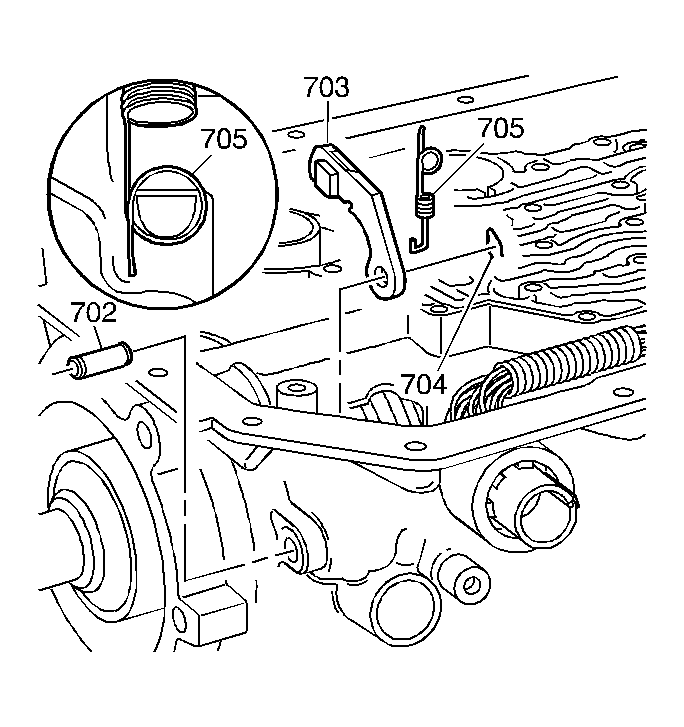

    Fig 1: View Of Parking Pawl Spring
    GM28421Courtesy of GENERAL MOTORS CORP.
  1. Install the parking pawl shaft (702) and the parking pawl (703).
  2. Install the parking pawl shaft retainer (704).
  3. Install the parking pawl spring (705).
    4. Fig 2: Identifying Parking Pawl Shaft Hole Plug
    GM28422Courtesy of GENERAL MOTORS CORP.
  4. Apply sealer GM P/N 12345382 or equivalent, to the parking pawl shaft hole plug (701).
  5. Using a 5/16 inch diameter rod, install the parking pawl shaft hole plug (701).
    6. Fig 3: Assembling Manual Shift Shaft Detent Lever To Parking Pawl Actuator Assembly
    GM28423Courtesy of GENERAL MOTORS CORP.
  6. Assemble the manual shift shaft detent lever assembly (711) to the parking pawl actuator assembly (710).
  7. Install the parking pawl actuator assembly (710) over the parking pawl.
    8. Fig 4: Identifying Manual Shift Shaft & Components
    GM56531Courtesy of GENERAL MOTORS CORP.
  8. Install the manual shift shaft seal (707).
  9. Partially install the manual shift shaft (708).
  10. Install the manual shift shaft detent lever nut (712) onto the manual shift shaft (708).
  11. Fully install the manual shift shaft (708).
  12. Install the manual shift shaft pin (709) onto the manual shift shaft (708).
    13. NOTE: Refer to Fastener Notice in Cautions and Notices.
  13. Tighten the manual shift shaft detent lever nut (712).

    Tighten:  Tighten the nut to 24 N.m (18 lb ft).

    14. Fig 5: Locating Parking Pawl Actuator Bracket & Bolts
    GM28425Courtesy of GENERAL MOTORS CORP.
  14. Install the parking pawl actuator bracket (713).
  15. Install the parking pawl actuator bracket bolts (714).

    Tighten:  Tighten the bolts to 24 N.m (18 lb ft).
