Manual 2-1 Band Servo Assembly Removal

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

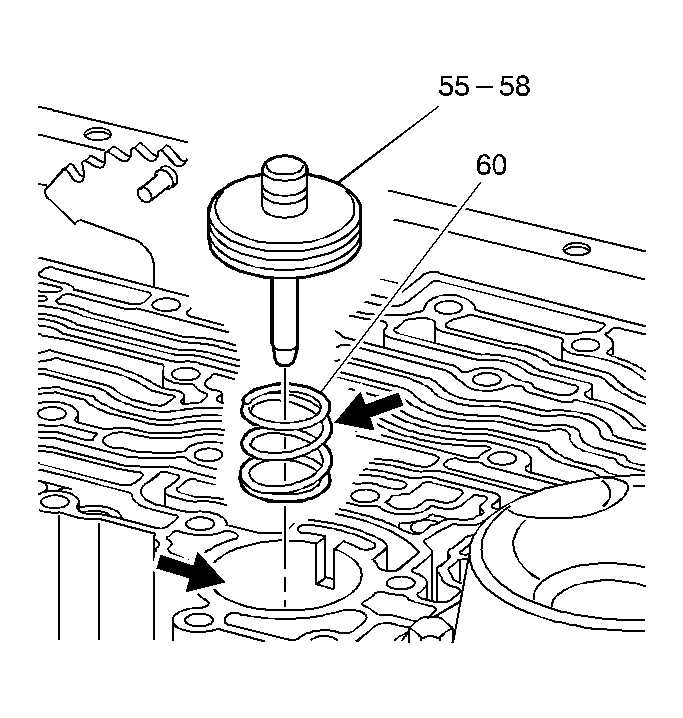

    Fig 1: Identifying Servo Piston Cushion Spring
    GM334754Courtesy of GENERAL MOTORS CORP.
  1. Remove the manual 2-1 band servo assembly (55-58).
  2. Remove the servo piston cushion spring (60).
  3. Inspect the servo piston cushion spring (60) for distortion.
  4. Inspect the servo piston case bore for wear and scoring.
