Low and Reverse Band Servo Assembly Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

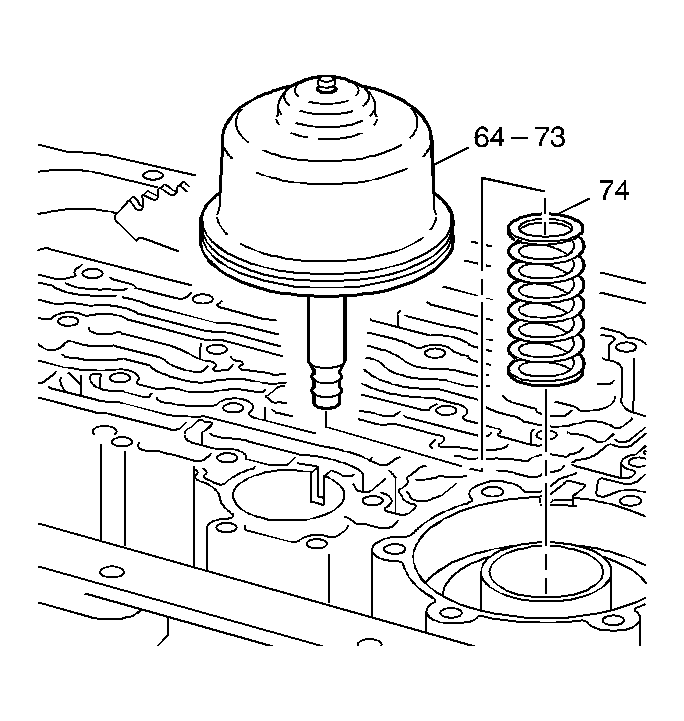

    Fig 1: View Of Low & Reverse Accumulator Piston Spring
    GM40606Courtesy of GENERAL MOTORS CORP.
  1. Install the low and reverse accumulator piston spring (74) into the transmission case.
    2. IMPORTANT: The low and reverse band servo assembly (64-73) is pushed down when tightening the cover bolts. Do not force the low and reverse band servo assembly (64-73) into the servo bore.
  2. Install the low and reverse band servo assembly (64-73).
    3. Fig 2: Installing Low & Reverse Band Servo Cover
    GM40607Courtesy of GENERAL MOTORS CORP.
  3. Install the low and reverse band servo cover gasket (63).
  4. Install the low and reverse band servo cover (62).
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the 6 low and reverse band servo cover bolts (61).

    Tighten:  Tighten the bolts to 24 N.m (18 lb ft) in an alternating pattern.
