Fourth Clutch Plate Installation

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

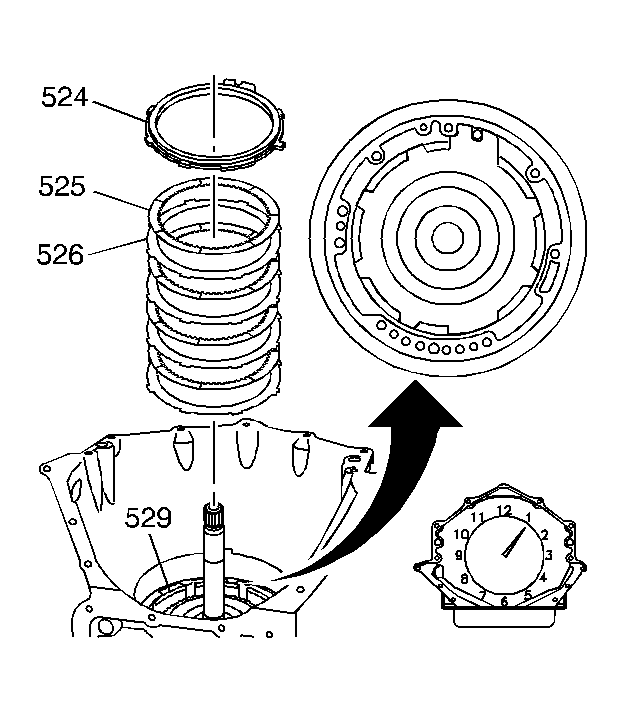

    Fig 1: Aligning Fourth Clutch Steel Plates V Notch Tangs
    GM335064Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Alternate the fourth clutch plates (525, 526), starting with a steel clutch plate (526) (4 steel, 4 composite). Install the fourth clutch steel plates (526) with the V notch tang at the 1 o'clock position in the fourth clutch housing.
  1. Install the fourth clutch plates (525, 526) into the fourth clutch housing (529).
  2. Install the fourth clutch backing plate (524). Align the notched tab of the fourth clutch backing plate (524) over the anchor pin in the case.
    3. Fig 2: Installing Fourth Clutch Backing Plate Retainer Ring
    GM335065Courtesy of GENERAL MOTORS CORP.
  3. Install the fourth clutch backing plate retainer ring (523).
