Fourth Clutch Assembly Removal

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

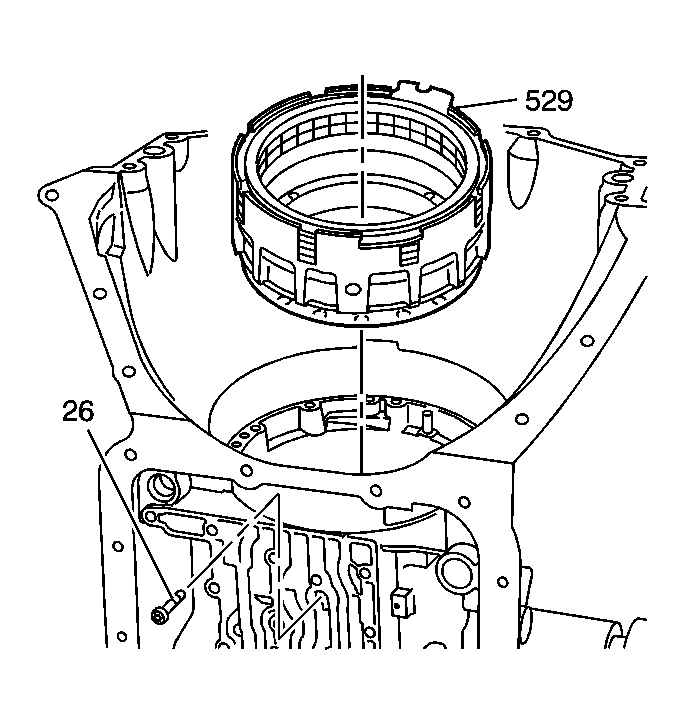

    Fig 1: Identifying Fourth Clutch Housing
    GM334757Courtesy of GENERAL MOTORS CORP.
  1. Verify the torque of the fourth clutch housing bolt (26). The torque should be 23 N.m (17 lb ft) minimum.
    2. NOTE: Discard the fourth clutch housing bolt (26) after removal. Damage could result to the fourth clutch housing (529) if the bolt is reused.
  2. Remove the fourth clutch housing bolt (26).
  3. Remove the fourth clutch housing (529) from the transmission case assembly.
