Transfer Case Shift Control Module C1

WARNING: This page is about a different car, the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

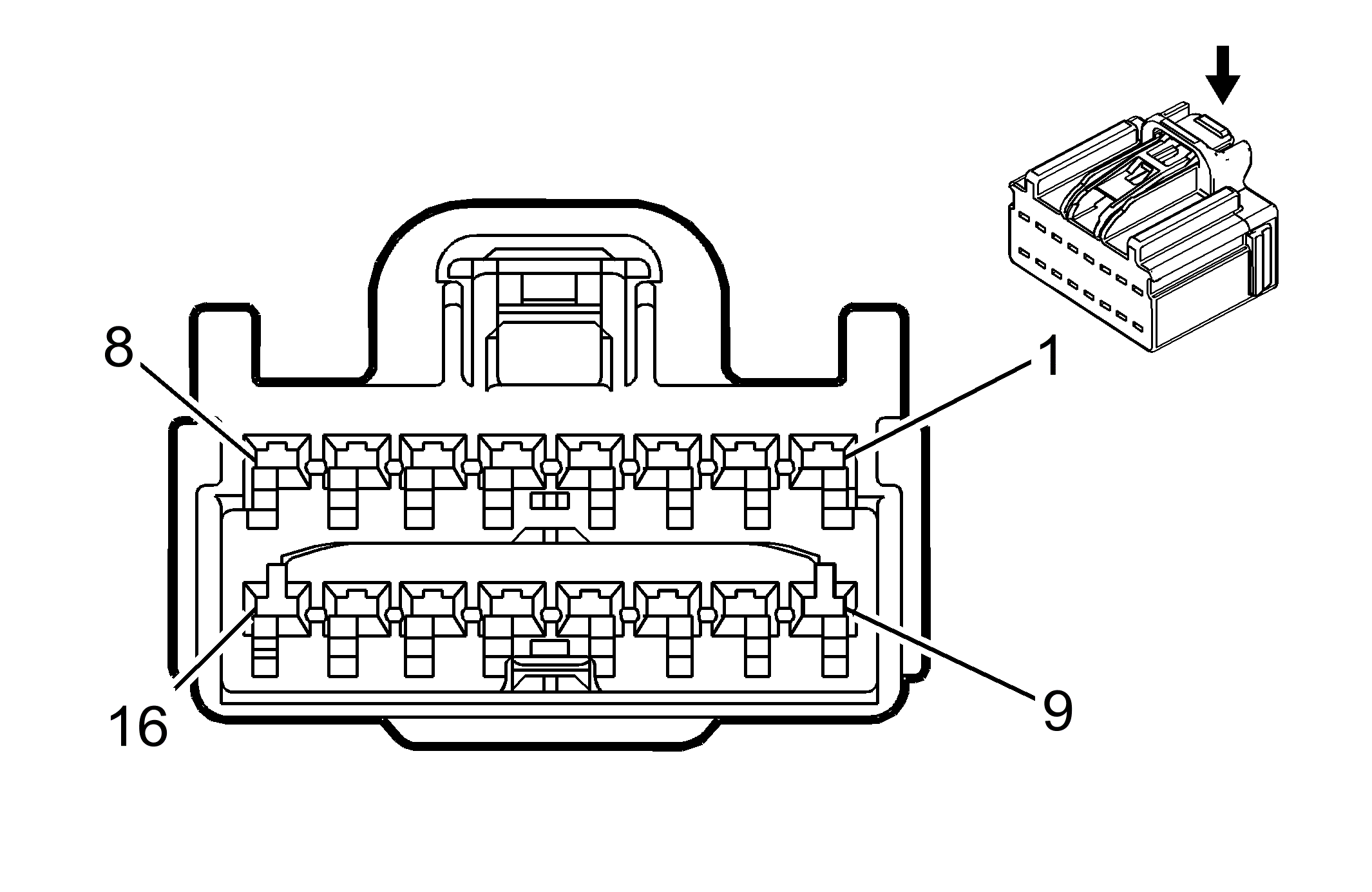

Fig 1: Transfer Case Shift Control Module C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Transfer Case Shift Control Module C1 Connector Parts Information

Connector Part Information

OEM: 13506916
Service: 88988265
Description: 16-Way F Kaizen 1.5 Series (BU)

Terminal Part Information

Pins: 2-6, 9-15
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pin: 7
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Transfer Case Shift Control Module C1 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	GY	6029	5-Volt Reference
3	BN/WH	1555	Channel P Encoder - Signal
4	GY/BK	1694	4WD Low Signal
5	BN	1560	Neutral Indicator Control
6	L-GN/BK	1563	2 'HI' Indicator - Control
7	TN	1569	Lock Solenoid Control
8	-	-	Not Used
9	L-GN/BK	6028	Transfer Case Encoder 5-Volt Reference
10	TN/WH	1554	Encoder Low Reference
11	L-BU	1693	Switch Signal
12	TN/BK	1566	4 'HI' Indicator - Control
13	PU/WH	1565	4 'LO' Indicator - Control
14	PK	1561	AWD Indicator Control
15	GY/BK	1570	Front Axle Actuator Control
16	-	-	Not Used
