Inflatable Restraint Front End Sensor - Left

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

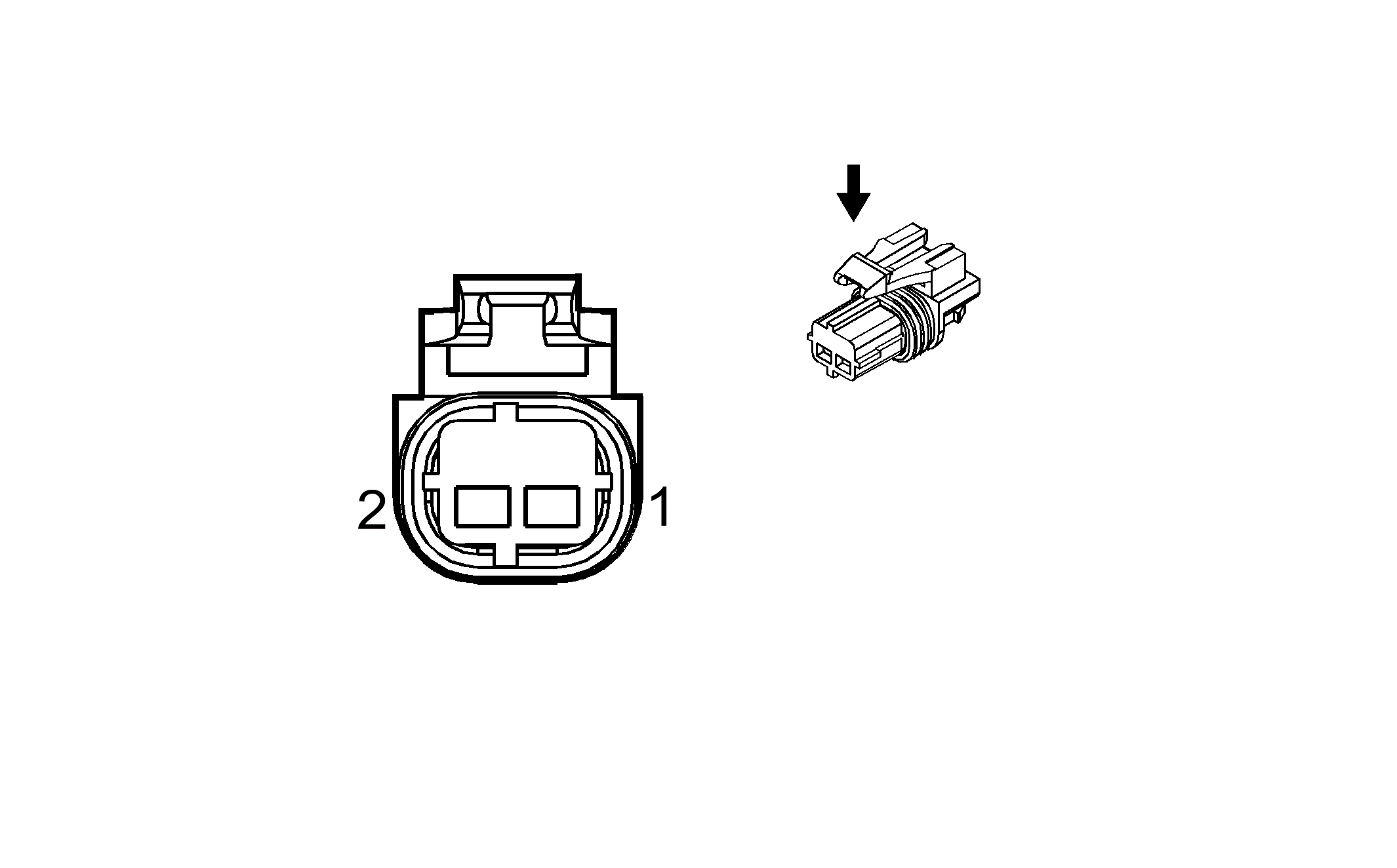

Fig 1: Inflatable Restraint Front End Sensor - Left Connector End View
GM698674Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Front End Sensor - Left Connector Parts Information

Connector Part Information
  • OEM: 15356718
  • Service: 88986247
  • Description: 2-Way F GT 150 Series Sealed 4.0 (YE)
Inflatable Restraint Front End Sensor - Left Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 GY 349 Front End Sensor - Left - Signal
2 YE 354 Low Reference
