Front Position Sensor Replacement - Electronic Suspension

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

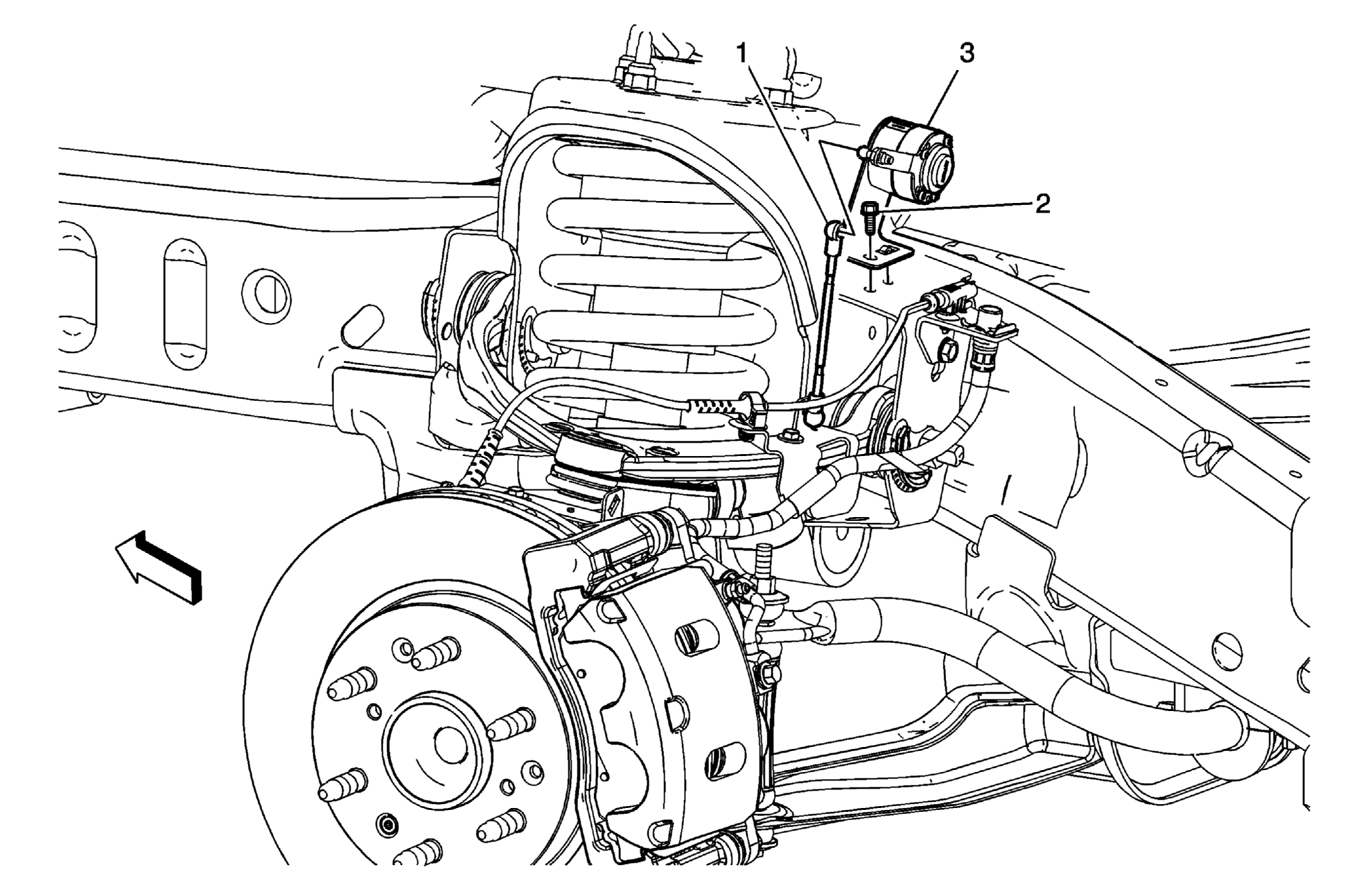

Fig 1: View Of Front Position Sensor & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Position Sensor Link Tip: Disconnect the link from the sensor ball stud.
2	Front Position Sensor Bolt Tip: Remove the bolt from the sensor. Tighten: 12 N.m (106 lb in)
3	Front Position Sensor Tip: Disconnect the electrical connector from the sensor.
