Air Temperature Actuator Replacement - Auxiliary (Delphi)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

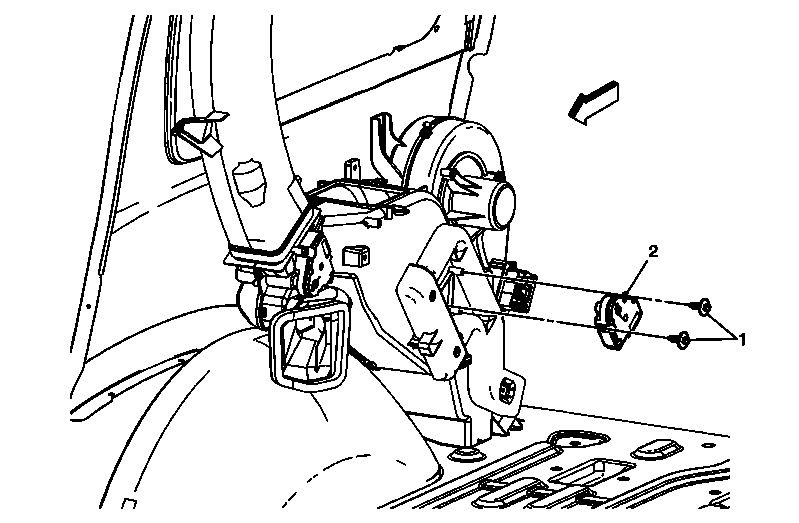

Fig 1: View Of Air Temp Actuator & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right (Extended Wheelbase) or Trim Panel Replacement - Rear Quarter - Right (Standard Wheelbase) . Disconnect the electrical connector from the temp actuator (2).
1	Screw, Mode Actuator (Qty: 3) NOTE: Refer to Fastener Notice . Actuator, Temp (2)

Callout

Component Name

Preliminary Procedure

Remove the right rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right (Extended Wheelbase) or Trim Panel Replacement - Rear Quarter - Right (Standard Wheelbase) .
Disconnect the electrical connector from the temp actuator (2).

Screw, Mode Actuator (Qty: 3)

NOTE: Refer to Fastener Notice .

Actuator, Temp (2)
