Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Engine Harness Electrical Connectors & Inlet Hose Clamp
    GM1697098Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold. Refer to Intake Manifold Replacement (RPOs LC9/LMG/LY5/L76/L92)  or Intake Manifold Replacement (RPOs LY2/LY6) .
  2. Disconnect the engine harness electrical connector (1) from the oil pressure sensor.
    3. Fig 2: View Of Oil Pressure Sensor & Washer
    GM1403317Courtesy of GENERAL MOTORS CORP.
  3. If not equipped with active fuel management perform the following step, using J 41712  or equivalent, remove the oil pressure sensor (706) and washer (707). See Special Tools .

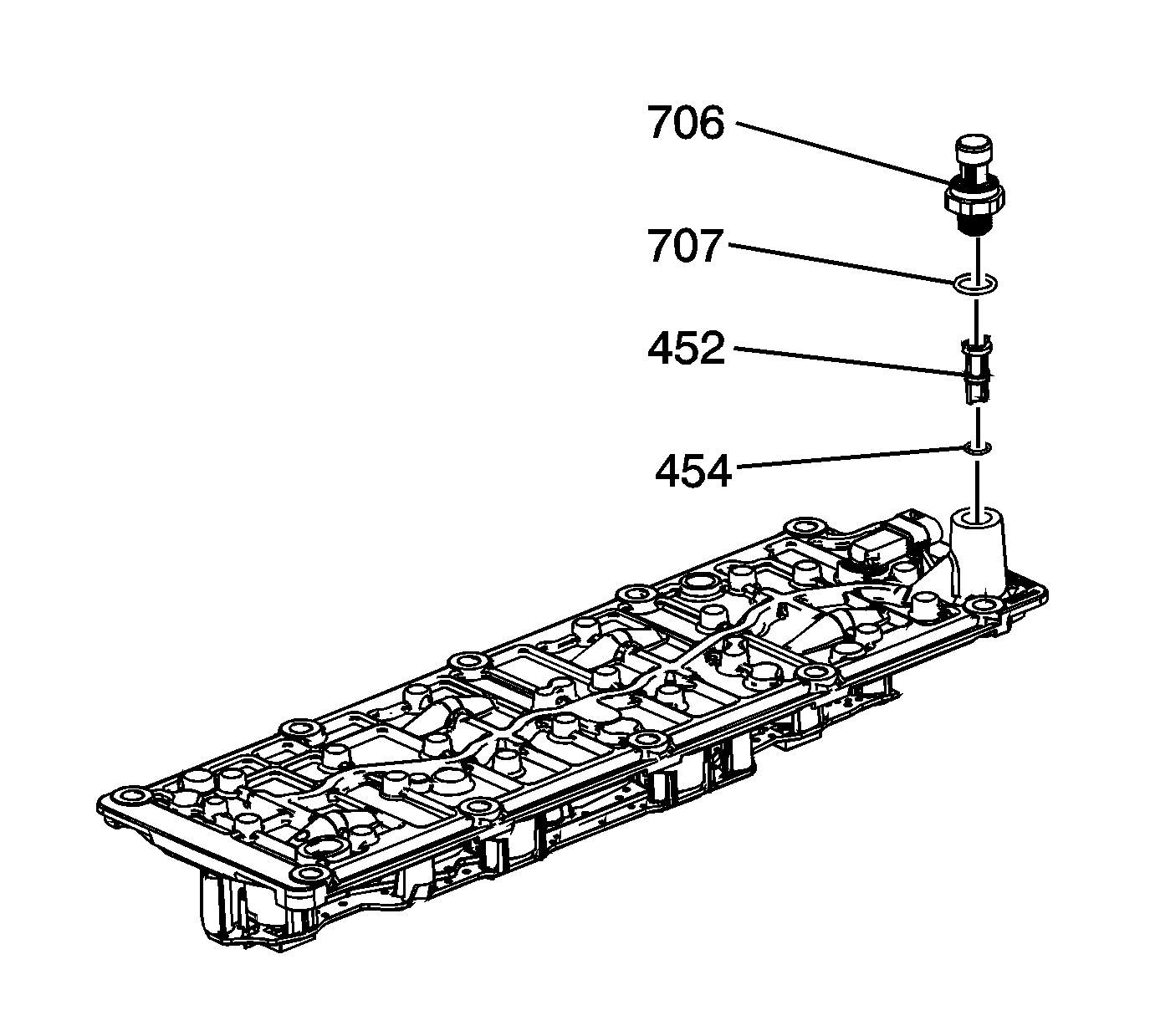

    4. Fig 3: View Of Oil Pressure Sensor, Washer And Valve Lifter Oil Filter
    GM1402008Courtesy of GENERAL MOTORS CORP.
  4. If equipped with active fuel management perform the following step, using J 41712  or equivalent, remove the oil pressure sensor (706) and washer (707). See Special Tools .
