Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Oil Level Sensor
    GM260123Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the oil level sensor to the oil pan.

    Tighten:  Tighten the sensor to 20 N.m (15 lb ft).

    2. Fig 2: View Of Electrical Connectors & Clips
    GM1698087Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine harness electrical connector (4) to the oil level sensor.

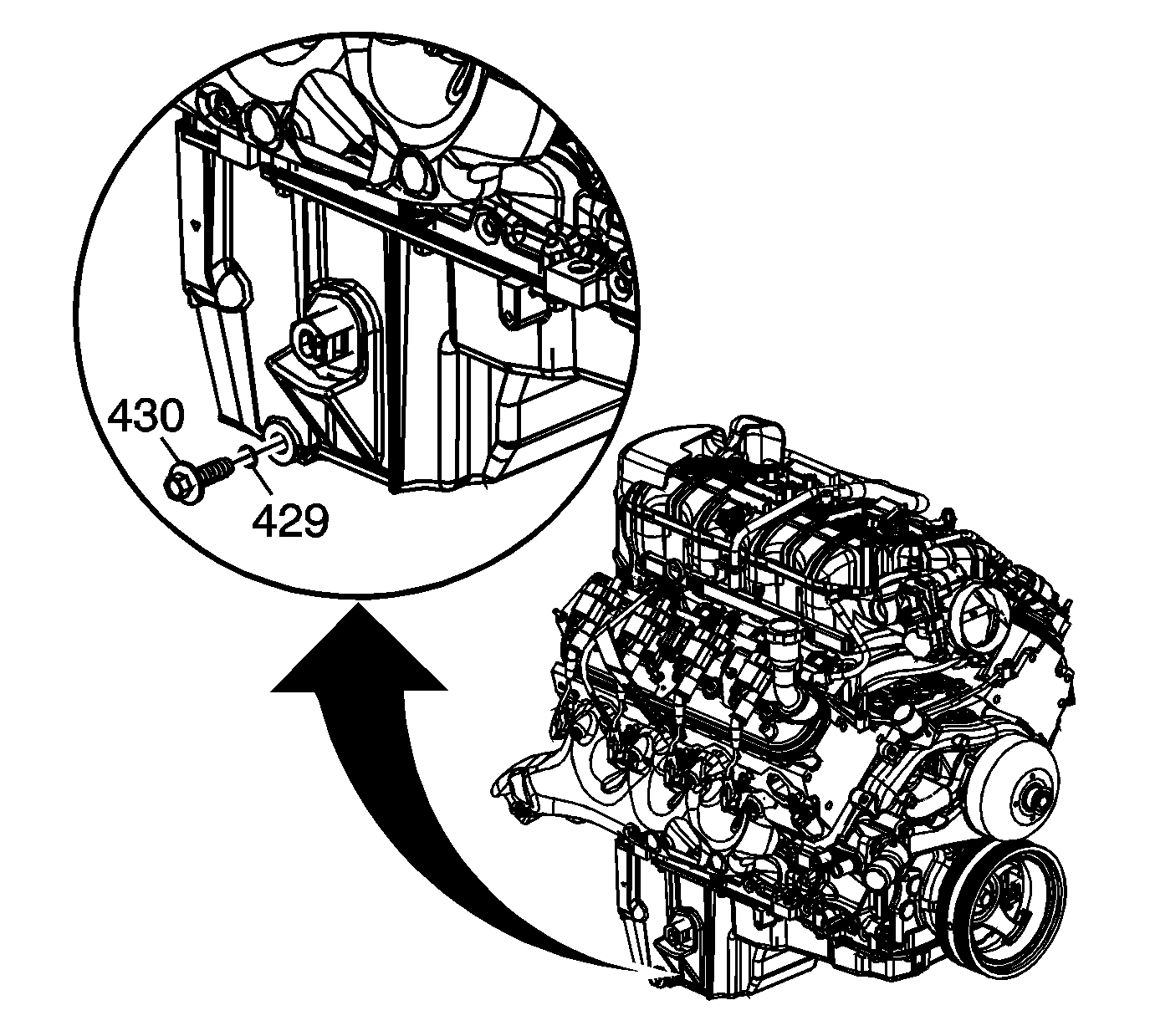

    3. Fig 3: View Of Oil Pan Drain Plug & Seal
    GM1658109Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the oil pan drain plug is tight.

    Tighten:  Tighten the drain plug to 25 N.m (18 lb ft).

  4. Lower the vehicle.
  5. Fill the engine with NEW engine oil. Refer to Fluid and Lubricant Recommendations and Capacities - Approximate Fluid .
  6. Start the engine and inspect for leaks.
